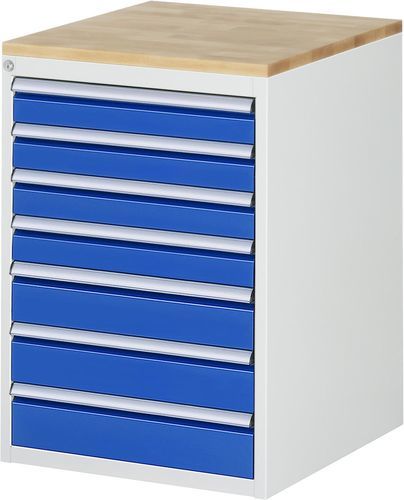

Small parts storage chest of drawers 03-L5.17A-B.11

Product description

• Top cabinet supplied with a 25 mm solid beech worktop. Beech lamellas joined by finger-joint gluing; front edge radius, other edges chamfered. Surface protection with eco-friendly lacquer oil. Classic beech worktop: pressure-resistant, durable, natural and wear-resistant. 100% produced in-house from PEFC-certified raw material from sustainable regional forestry.

Features

• 7 x drawers (size L): 4 x 90 mm height, 3 x 120 mm height.
• Inner drawer dimensions: W 490 x D 560 mm; load capacity per drawer: 100 kg.
• Usable drawer height corresponds to front height minus 15 mm.
• Roll-mounted partial-extension slides (90% extension) with self-closing and anti-reverse mechanism.
• Continuous ErgoScript® handle profile: steel base with aluminium-coloured overlay and integrated transparent cover (incl. label strip).
• Central locking: pin cylinder lock with 2 keys.

Technical data (tabular)
Extension type: Partial extension 90 %
Width: 580 mm
Static surface load: 750 kg
Height: 825 mm
Number of drawers: 7
Depth: 650 mm
Top type: Beech top
Top thickness: 25 mm

Characteristics / technical specifications

• Extension type: Partial extension 90 %
• Width: 580 mm
• Depth: 650 mm
• Height: 825 mm
• Number of drawers: 7
• Drawer inner dimensions: W 490 x D 560 mm
• Drawer load capacity: 100 kg
• Static surface load: 750 kg
• Top type: Beech top (solid worktop), Top thickness: 25 mm
• Handle profile: ErgoScript® with transparent cover and label strip
• Locking: Central locking (pin cylinder lock, 2 keys)
• Slide system: Roll-mounted partial-extension slides with self-closing and anti-reverse mechanism
