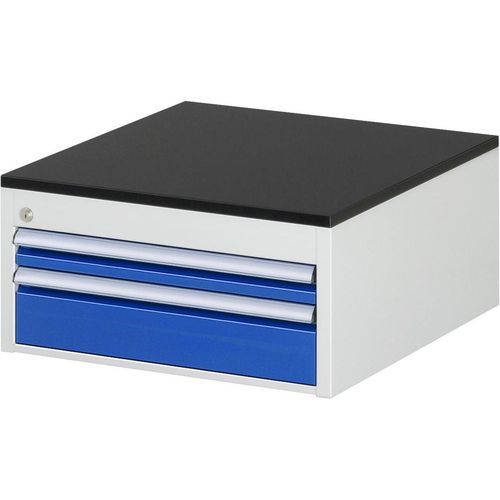

Chest of drawers 03-L1.1A-M.11

Description

• Top cabinet including melamine resin‑coated worktop, thickness 19 mm. Top and underside with black melamine direct coating. Melamine coating according to DIN68765. Splash‑water resistant and stain‑resistant. Surface properties per EN14322/EN14323: abrasion resistance Class 3A; scratch resistance N>1.5; stain resistance level ≥3 (e.g. acetone, alcohol, organic solvents, petroleum spirit); resistance to cracking level ≥3; cigarette ember behavior Grade 3; water vapor behavior Grade 4. Migration certificate available, suitable for use in food‑related environments. Normally flammable (B2) per DIN4102. Panel core made of chipboard according to EN309/EN312 (emission class E1). All‑round light‑grey antistatic ABS edging.

Equipment

• 2 x drawer size L (1×H60 mm, 1×H120 mm).
• Drawer size L: internal dimension W490 × D560 mm, load capacity 100 kg. Usable drawer height corresponds to front height minus 15 mm.
• Roller‑mounted partial extension runners (90% extraction) with self‑closing and backstop.
• Continuous handle strip ErgoScript®: steel base with aluminium‑coloured overlay and integrated transparent cover (including label strip).
• Central locking (pin cylinder lock with 2 keys).

Configuration

• Selected configuration on this page: 90% partial extension, Melamine top.
• Available top variants: Beech top, Melamine top, Metal top.
• Choice of frame and equipment colours (including RAL7035 light grey, RAL5010 gentian blue, RAL7016 anthracite grey, etc.).
• Express production available at extra cost.

Technical data
Extraction type: Partial extension 90%
Width: 580 mm
Uniform load capacity (static): 750 kg
Height: 280 mm
Number of drawers: 2
Depth: 650 mm
Top type: Melamine top
Top thickness: 19 mm

Characteristics / technical specifications

• Series: 7000
• EAN: 4040376233561
• Dimensions (W × H × D): 580 mm × 280 mm × 650 mm
• Drawers: 2 units (sizes: H60 / H120)
• Drawer internal dimension (size L): W490 × D560 mm
• Drawer load capacity: 100 kg
• Worktop material: chipboard with melamine resin coating (19 mm), emission class E1
• Surface: splash‑water resistant, stain‑resistant, abrasion‑ and scratch‑resistant
• Fire behavior: B2 (DIN4102)
