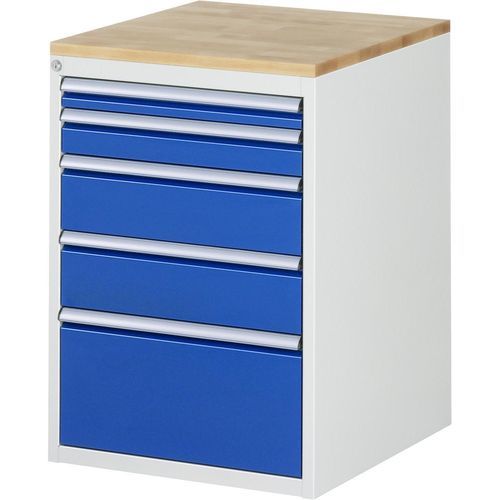

Small parts storage chest of drawers 03-L5.2A-B.11

Description

• Cabinet supplied with integrated beech solid worktop, thickness 25 mm. Finger‑jointed beech lamellas, rounded front edge and chamfered other edges. Surface protected with an eco-friendly lacquer oil. Beech top offers high load capability, pressure resistance and long service life; manufactured from PEFC-certified, regionally sourced raw material.

Features

• 5 drawers with front heights: 1 x H60, 1 x H90, 2 x H150, 1 x H270 mm.
• Drawer internal dimensions: B490 x D560 mm; drawer load capacity 100 kg. Usable drawer height = front height minus 15 mm.
• Roll-mounted partial-extension rails (90% travel) with self-closing and anti-rebound feature.
• Continuous ErgoScript® handle strip: steel base with aluminium-coloured overlay and integrated transparent cover (including label strip).
• Central locking by pin-cylinder lock supplied with 2 keys.

Technical data
Pull-out type: partial extension 90%
Width: 580 mm
Static surface load: 750 kg
Height: 825 mm
Number of drawers: 5
Depth: 650 mm
Top type: beech top
Top thickness: 25 mm

Product specifications

• Brand: RAU
• Commercial name (Series): Series 7000
• Article number: 03-L5.2A-B.11
• EAN: 4040376053107
• Dimensions (W x H x D): 580 mm x 825 mm x 650 mm
• Drawers: 5 (front heights: H60 / H90 / H150 / H270)
• Pull-out type: partial extension 90% (full extension 100% optional)
• Top: beech solid, thickness 25 mm
• Drawer load capacity: 100 kg (internal B490 x D560 mm)
• Static surface load: 750 kg
