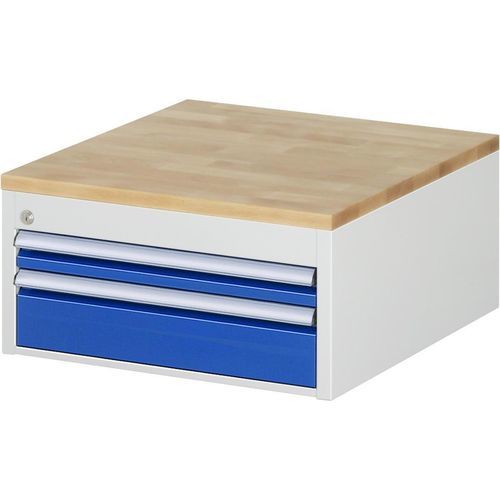

Small parts storage chest of drawers 03-L1.1A-B.11

Small parts storage chest of drawers - 03-L1.1A-B.11 - RAU
Small parts storage chest of drawers - 03-L1.1A-B.11 - RAU
Small parts storage chest of drawers - 03-L1.1A-B.11 - RAU - image - 2
Small parts storage chest of drawers - 03-L1.1A-B.11 - RAU - image - 3
Add to favorites
Compare this product

Characteristics

Options
for small parts storage

Description

Description
  • Top cabinet supplied with a beech solid worktop, thickness 25 mm.
  • Beech lamella with finger-joint gluing. Front edge with radius, other edges chamfered. Surface protected with an environmentally friendly oil-based lacquer.
  • Worktop attributes: suitable for high loads, compression-resistant, long service life, natural appearance, wear-resistant and reusable.
  • 100% in-house production (from tree to worktop) using PEFC-certified raw material from sustainable regional forestry.


Features
  • 2 drawer heights: 1 × H60 mm, 1 × H120 mm.
  • Drawer internal dimensions: W 490 × D 560 mm, load capacity 100 kg.
  • Usable drawer height equals front height minus 15 mm.
  • Roller-bearing partial-extension slides (90%) with self-engaging mechanism and anti-rollback.
  • Continuous ErgoScript® handle rail: steel base with aluminium-coloured overlay and integrated clear cover (including labelling strip).
  • Central locking (pin-tumbler lock with 2 keys).


Technical specifications
  • Extension type: partial extension 90%
  • Width: 580 mm
  • Height: 285 mm
  • Depth: 650 mm
  • Number of drawers: 2
  • Static surface load: 750 kg
  • Top type: Beech-Top
  • Top thickness: 25 mm
