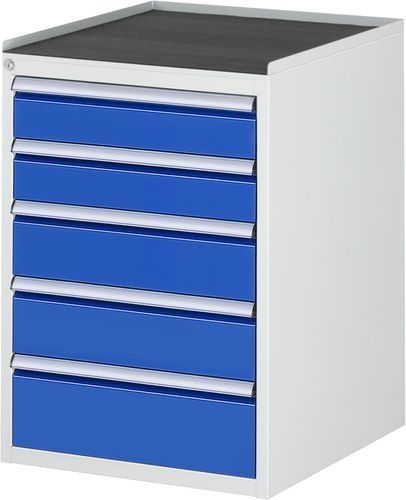

Small parts storage chest of drawers 03-L5.11A-MT.11

Description

• Cabinet top including metal top with 3-sided turned edge and anti-slip mat, top thickness 25 mm.

Equipment

• 5 drawers — front heights: 2 × H120 mm, 2 × H150 mm, 1 × H180 mm.
• Drawer interior (inside W490 x D560 mm, load capacity 100 kg). Usable drawer height equals front height minus 15 mm. Roll-mounted partial-extension slides (90% travel) with self-closing and anti-retraction feature.
• Continuous ErgoScript® handle strip: steel sheet base with aluminium-coloured overlay and integrated transparent cover (including label strip).
• Central locking (pin-cylinder lock with 2 keys).

Technical data
Extension type: partial extension 90 %
Width: 580 mm
Static surface load: 750 kg
Height: 825 mm
Number of drawers: 5
Depth: 650 mm
Top type: metal top
Top thickness: 25 mm

Specifications / technical details

• EAN: 4040376061744
• Article number: 03-L5.11A-MT.11
• Model/Designation: Drawer cabinet Series 7000
• Dimensions (H x W x D): 825 mm x 580 mm x 650 mm
• Drawers (inside): W490 x D560 mm
• Drawer usable height: front height minus 15 mm
• Drawer load capacity: 100 kg
• Static surface load: 750 kg
• Top: metal top, thickness 25 mm
• Extension: partial extension 90 % with self-closing and anti-retraction
• Handle strip: ErgoScript® with label strip
• Locking: central lock (pin-cylinder lock, 2 keys)
