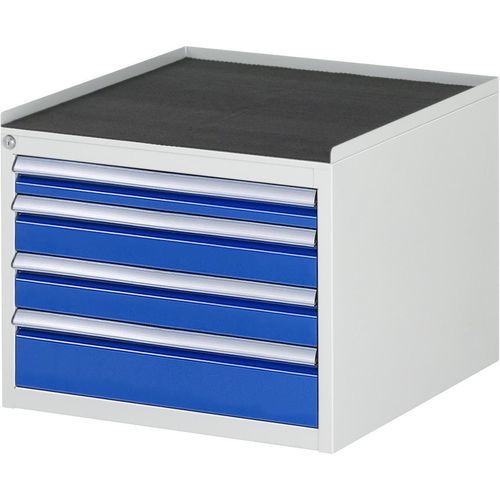

Small parts storage chest of drawers 03-L2.7A-MT.11

Product overview Cabinet supplied with metal top featuring a 3-sided anti-roll edge and anti-slip mat, top height 25 mm.

Equipment

• 4 drawers: 1 x H60 mm, 2 x H90 mm, 1 x H120 mm
• Drawer internal dimensions: W490 x D560 mm, load capacity 100 kg
• Ball-bearing partial-extension slides (90% extension) with self-closing and backstop
• Continuous handle rail ErgoScript®: steel base with aluminium-coloured overlay and integrated transparent cover (label strip included)
• Central locking (pin cylinder lock with 2 keys)

Configuration options

• Extension type: partial extension 90% (factory setting), optional full extension 100%
• Top options: beech top, melamine top, metal top (metal top selected)
• Available colour variants (frame / equipment): RAL3000 flame red, RAL5002 ultramarine blue, RAL5010 gentian blue, RAL5012 light blue, RAL5015 sky blue, RAL5018 turquoise blue, RAL5011 steel blue, RAL6011 reseda green, RAL7035 light grey, RAL7045 tele grey, RAL9006 white aluminium, RAL9011 graphite black, RAL7031 blue grey, RAL7016 anthracite grey

Technical data Extension type: partial extension 90%
Width: 580 mm
Static load per surface: 750 kg
Height: 465 mm
Number of drawers: 4
Depth: 650 mm
Top type: Metal top
Top thickness: 25 mm
Drawer (internal): W490 x D560 mm, load capacity 100 kg
EAN: 4040376250728
Article number: 03-L2.7A-MT.11

Characteristics / technical specifications

• Model / Series: Serie 7000
• EAN: 4040376250728
• Article no.: 03-L2.7A-MT.11
• Width: 580 mm
• Depth: 650 mm
• Height: 465 mm
• Number of drawers: 4 (1xH60, 2xH90, 1xH120)
• Top type / Top: Metal top (top height 25 mm)
• Top thickness: 25 mm
• Static surface load: 750 kg
• Drawer internal dimensions: W490 x D560 mm (load capacity 100 kg)
• Extension type: partial extension 90% (optional full extension 100%)
• Locking: central locking (pin cylinder lock, 2 keys)
