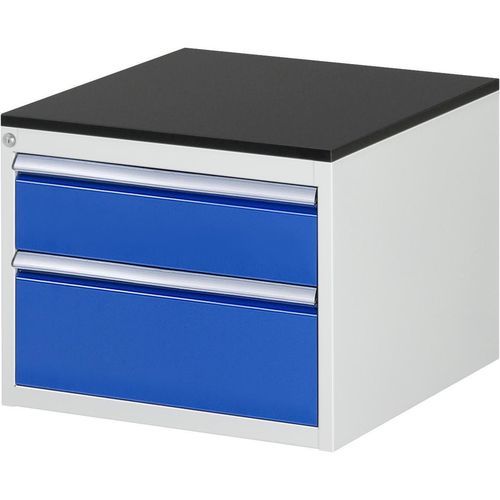

Chest of drawers 03-L2.11A-M.11

Description Cabinet top including worktop with melamine resin coating, thickness 19 mm. Top and underside finished with black melamine direct coating according to DIN 68765. Splash-proof and dirt-resistant. Surface properties per EN14322 / EN14323: abrasion resistance Class 3A; scratch resistance N > 1.5; stain resistance ≥ 3; crack resistance ≥ 3; cigarette burn rating 3; steam resistance rating 4. Declaration of harmlessness regarding migration behaviour; suitable for use in food-related areas. Surface classified as normally flammable (B2) according to DIN 4102. Panel core made of chipboard to EN309 / EN312 (emission class E1). All-round light grey, antistatic ABS edge.

Equipment

• 2 × drawer sizes L: 1 × H150 mm, 1 × H210 mm
• Drawer interior (W 490 × D 560 mm) with load capacity 100 kg
• Usable drawer height = front height minus 15 mm
• Roller-mounted partial-extension slides (90% extension) with self-entry and anti-drop device
• Continuous handle profile ErgoScript®: steel sheet base with aluminium-coloured overlay and integrated transparent cover (including label strip)
• Central locking (pin cylinder lock) with 2 keys

Technical data Extension type: partial extension 90%
Width: 580 mm
Height: 460 mm
Depth: 650 mm
Number of drawers: 2
Static surface load: 750 kg
Top type: melamine top
Top thickness: 19 mm

Characteristics / technical specifications

• Product series: Series 7000
• EAN: 4040376242808
• External dimensions (W × H × D): 580 mm × 460 mm × 650 mm
• Number of drawers: 2
• Extension type: partial extension 90% (roller-mounted, self-entry, anti-drop device)
• Top material: melamine top, thickness 19 mm, chipboard core EN309 / EN312 (E1)
• Drawer load capacity: 100 kg (interior W 490 × D 560 mm)
• Static surface load: 750 kg
• Surface standards / properties: DIN 68765; EN14322 / EN14323 (abrasion resistance Class 3A, stain resistance ≥ 3, etc.)
