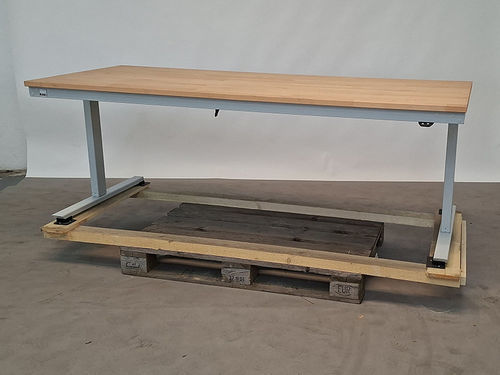

Beech workbench 08-AT-200-080-M-CH-Sch

electricheight-adjustable

Product overview

• Electric height-adjustable workbench, adlatus series, Swiss version.
• Worktop: solid beech, finger-joint glued, 25 mm thickness. Frame: profile steel tube under the top with sled base and leveling feet.

Construction and materials

• Beech solid worktop, 25 mm, finger-joint glued slats; front edge rounded, other edges chamfered.
• Surface protected with lacquered linseed oil.

Mechanics and electrical system

• Two lifting columns (50×80 mm) with integrated linear drive, control unit and connection cable with plug.
• Profile steel tube frame (50×25×2.5 mm) and sleds (60×30×3 mm) with leveling feet.
• Quiet, stepless and synchronous height adjustment even under asymmetric load; up/down push buttons.
• Adjustment speed: 38 mm/s (no load). Duty cycle: 10% (6 min/h) — standby consumption 0.1 W.

Technical data
Width: 2000 mm
Depth: 800 mm
Height range: 720–1120 mm
Worktop material: solid beech, finger-joint glued
Worktop thickness: 25 mm
Maximum stationary surface load: 150 kg


Standards & conformity

• CE declaration of conformity. Meets essential requirements of Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. Applied harmonized standards include DIN EN ISO 12100 and DIN EN 1570-1.

Options

• Optional battery box for autonomous operation (accessory).

Condition

• Worktop slightly soiled and damaged (B-grade).
