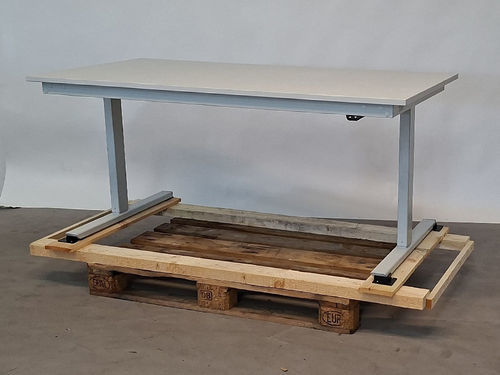

Steel workbench 08-AT-150-080-M-Schfor workshopsheight-adjustableelectric
Add to favorites
Compare this product
Characteristics
- Worktop material
- steel
- Applications
- for workshops
- Other characteristics
- height-adjustable, electric
- Length
800 mm
(31 in)- Width
1,500 mm
(59 in)- Height
Min.: 720 mm
(28 in)Max.: 1,120 mm
(44 in)- Load
150 kg
(330.7 lb)
Description
Description
Additional notes / condition description
Specifications / technical characteristics
- Worktop with melamine resin coating, thickness 22 mm.
- Top and underside with a light grey melamine resin direct coating. Melamine resin coating according to DIN 68765. Splash-proof and dirt-resistant, surface properties according to EN14322/EN14323: abrasion resistance Class 3A, scratch resistance N > 1.5, stain resistance level ≥ 3 (e.g., acetone, alcohol, organic solvents, petrol), crack resistance level ≥ 3, cigarette burn behavior Grade 3, water vapor behavior Grade 4. Certificate of harmlessness regarding migration behavior, therefore suitable for use in the food sector. Surface normally flammable (B2) according to DIN 4102. Panel core made of particleboard according to EN309/EN312 (emission class E1). All-round light grey antistatic ABS edge.
- System substructure, W1490 x D750 x H700-1100 mm.
- 2 lift columns (50 x 80 mm, tested according to EN 60335-1) including control unit and connection cable with plug. Skids made of profile steel tube (60 x 30 x 3 mm) including leveling feet. Complete frame of profile steel tube (steel tube 50 x 25 x 2.5 mm) under the worktop. Control element with up/down push-button.
- Electric adjustment via 2 lift columns by integrated linear actuator. Quiet, stepless and fully synchronous adjustment of working height even under asymmetric load. Adjustment speed 38 mm/s (no load). Duty cycle 10% (6 minutes per hour or 2 minutes continuous operation at full load). Standby power consumption only 0.1 W.
- CE declaration of conformity: The product complies with the essential requirements of Directive 2006/42/EC (Machinery Directive) and Directive 2014/30/EU (EMC). The following harmonized standards were applied: DIN EN ISO 12100:2011-03 and DIN EN 1570-1 (safety requirements for lifting tables - part 1).
- Note: The system can optionally be operated autonomously via a battery box (accessory), so a permanent mains connection is not required.
- Color: RAL7035 light grey.
- Top slightly soiled, scratched and damaged.
- Small paint damage on the lift columns.
Additional notes / condition description
- Product offered as B-grade (minor damage / visual deviations as described).
Specifications / technical characteristics
- Width: 1500 mm
- Depth: 800 mm
- Height from: 720 mm
- Height to: 1120 mm
- Static surface load: 150 kg
- Top type: melamine-coated worktop
- Top thickness: 22 mm
- 2 lift columns 50 x 80 mm (tested according to EN 60335-1)
- Adjustment speed: 38 mm/s (no load)
- Duty cycle: 10 %
- Standby power consumption: 0.1 W
- Frame / skids: profile steel tube (frame 50 x 25 x 2.5 mm; skids 60 x 30 x 3 mm) with leveling feet
- Color: RAL7035 light grey
