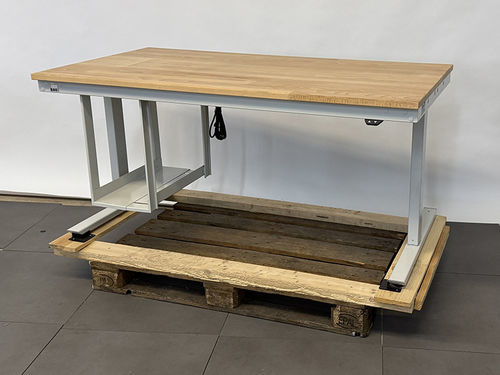

Beech workbench 08-AT-150-080-B+09-CPU.12-Sch

electricheight-adjustable

Product description

• Beech solid worktop, 25 mm thickness.
• Finger-jointed beech lamellae with glued joints. Front edge radius, other edges chamfered. Surface protection with environmentally friendly lacquered oil. 100% in-house production using PEFC-certified raw material from sustainable regional forestry.
• System underframe, W1490 x D750 x H700–1100 mm.
• 2 lifting columns (50 x 80 mm, tested to EN 60335-1) including control unit and power cable with plug. Skids made of profile steel tube (60 x 30 x 3 mm) including leveling feet. Complete frame from profile steel tube (50 x 25 x 2.5 mm) fitted under the top. Control unit with up/down pushbutton.
• Electric adjustment via 2 lifting columns with integrated linear drive. Low-noise, stepless and synchronous adjustment even under asymmetrical loads. Travel speed 38 mm/s (no load). Duty cycle 10% (6 minutes per hour or 2 minutes continuous at full load). Standby power consumption: 0.1 W.
• CE conformity: Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU. Applied harmonised standards include DIN EN ISO 12100:2011-03; DIN EN 1570-1 (safety requirements for lifting tables, with exceptions).
• Note: System can be operated autonomously with optional battery box (accessory), no permanent mains connection required.
• Color: RAL 7035 (light grey).
• Condition (B-stock): top slightly soiled; CPU holder slightly scratched.

Equipment

• 1 x CPU holder, W150 x D500 x H500 mm.
• CPU holder width can be adapted to CPU dimensions during assembly. Positionable freely under the worktop.

Technical data (table)
Width: 1500 mm
Uniformly distributed load (static): 150 kg
Depth: 800 mm
Height from: 720 mm
Height to: 1120 mm
Top type: Beech solid worktop
Top thickness: 25 mm

Characteristics / Technical specifications

• Width: 1500 mm
• Depth: 800 mm
• Height adjustment: 720–1120 mm (electric, 2 lifting columns)
• Top material: Beech solid (finger-jointed), thickness 25 mm
• Load capacity / uniformly distributed load (static): 150 kg
• Drive: integrated linear drive, synchronous adjustment, 38 mm/s (no load)
• Duty cycle: 10%
• Standby consumption: 0.1 W
• Surface: lacquered oil (environmentally friendly)
• Frame colour: RAL 7035 light grey
• Optional accessories: battery box (for autonomous operation), castor set, comfort control unit, mounting kit
• Condition: minor signs of use (top soiled, CPU holder scratched)
