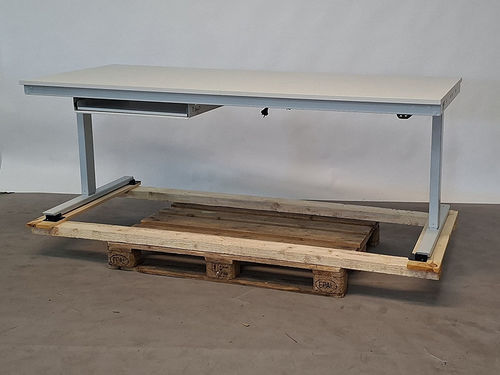

Steel workbench 08-AT-200-080-M-Sch

with drawermetalheight-adjustable

Short description

• Worktop with 22 mm melamine resin coating. Top and underside with light grey melamine direct coating; splash-proof and dirt-resistant; core of chipboard (emission class E1). All-round light grey antistatic ABS edging.
• System subframe B1990 x D750 x H700-1100 mm (adjustable).
• Electric height adjustment via 2 lift columns (50 x 80 mm) including control unit and connection cable with plug; skids made of rectangular steel tube (60 x 30 x 3 mm) with leveling feet; full frame of rectangular steel tube (50 x 25 x 2.5 mm) above the worktop; control with up/down button.
• Low-noise, stepless and synchronous height adjustment even under asymmetric load; travel speed 38 mm/s (no load); duty cycle 10% (6 minutes per hour or 2 minutes continuous at full load); standby power consumption 0.1 W.
• Color: RAL7035 light grey.
• Condition: worktop slightly soiled and damaged; small scratches and paint damage on the frame (B-stock).

Equipment

• Keyboard drawer B575 x D350 mm including left or right extendable support (MDF) for keyboard and mouse (100% pull-out, load capacity 20 kg, detent).

CE compliance & standards

• Declaration of conformity: Product meets the requirements of Directive 2006/42/EC (Machinery Directive) and 2014/30/EU (EMC Directive).
• Applied harmonised standards: DIN EN ISO 12100:2011-03; DIN EN 1570-1 (safety requirements for lifting tables, with exceptions).

Technical details (table)
Width: 2000 mm
Depth: 800 mm
Height from: 720 mm
Height to: 1120 mm
Static surface load: 150 kg
Worktop type: melamine-coated worktop
Worktop thickness: 22 mm
2 lift columns (50x80 mm) including control unit and connection cable
Skids: rectangular steel tube 60x30x3 mm with leveling feet
Frame: rectangular steel tube 50x25x2.5 mm beneath the worktop
Control: up/down button
Adjustment speed: 38 mm/s (no load)
Duty cycle: 10%
Standby consumption: 0.1 W

Note

• System optionally operable autonomously via a battery box (accessory).
• Covering classified as normally flammable (B2) according to DIN4102; migration certificate available (suitable for use in food-related areas).

Technical characteristics

• Width: 2000 mm
• Depth: 800 mm
• Height range: 720–1120 mm
• Static surface load: 150 kg
• Worktop thickness: 22 mm
• Worktop surface: melamine resin coating, light grey
• Edge: antistatic ABS edge, light grey
• Subframe: system subframe B1990 x D750 x H700-1100 mm
• Drive: 2 lift columns (50 x 80 mm) with linear drive
• Frame/Skids: steel tube (frame 50x25x2.5 mm; skids 60x30x3 mm)
• Control: up/down button; optional comfort control with memory (accessory)
• Adjustment speed: 38 mm/s
• Duty cycle: 10%
• Standby consumption: 0.1 W
• Color: RAL7035 (light grey)
• Equipment: keyboard drawer B575 x D350 mm (load capacity 20 kg)
• Condition: slight soiling, small scratches and paint damage (B-stock)
