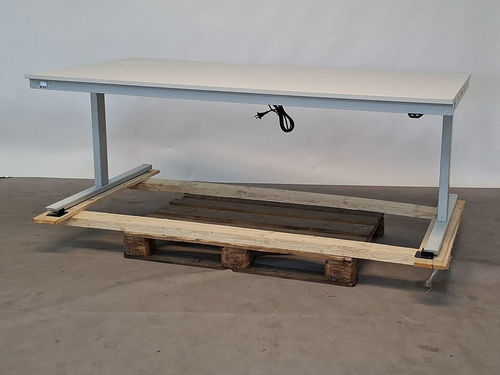

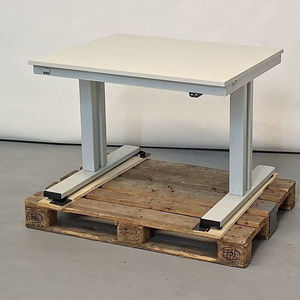

Steel workbench 08-AT-200-100-M-Sch

for workshopsheight-adjustableelectric

Product description

• Worktop with melamine resin coating, thickness 22 mm.
• Both top and underside with light grey melamine direct coating. Coating according to DIN 68765. Splash-proof and stain-resistant. Surface properties according to EN14322/EN14323: abrasion resistance Class 3A, scratch resistance N>1.5, stain resistance level ≥ 3 (e.g. acetone, alcohol, organic solvents, petroleum ether), crack resistance level ≥ 3, cigarette glowing behavior Grade 3, steam behavior Grade 4. Certificate of non-harmful migration behavior, suitable for use in food areas. Coating normally flammable (B2) according to DIN 4102. Core: particleboard according to EN309/EN312 (emission class E1). All-round light grey antistatic ABS edge.
• System undercarriage: W1990 × D950 × H700–1100 mm.
• 2 lifting columns (50×80 mm, tested according to EN 60335-1) including control unit and connection cable with plug. Skid runners made of profile steel tube (60×30×3 mm) including leveling feet. Complete frame made of profile steel tube (50×25×2.5 mm) mounted under the worktop. Control unit with up/down pushbutton.
• Electric adjustment via the 2 lifting columns with integrated linear actuator. Quiet, stepless and fully synchronous height adjustment even under asymmetric load. Adjustment speed 38 mm/s (no load). Duty cycle 10% (6 minutes per hour or 2 minutes continuous operation at full load). Standby power consumption only 0.1 W.
• Note: The system can optionally be operated autonomously via a battery box (accessory), so permanent mains connection is not required.
• Color: RAL7035 light grey.
• Condition: B-stock – top slightly soiled / damaged.

Declaration of CE conformity / Standards
The product meets the essential requirements of the relevant harmonisation legislation: Directive 2006/42/EC (Machinery Directive) and Directive 2014/30/EU (EMC). Applied harmonised standards: DIN EN ISO 12100:2011-03 (Safety of machinery - Risk assessment and risk reduction), DIN EN 1570-1 (Safety requirements for lift tables - Part 1, excluding certain chapters).

Technical data
Width: 2000 mm
Static load per surface: 150 kg
Depth: 1000 mm
Height from: 720 mm
Height to: 1120 mm
Top type: Melamine-coated worktop
Top thickness: 22 mm

Delivery & price
Net price (excl. VAT): €777.00
Gross display on page: €924.63 (incl. VAT)
Delivery time: approx. 5 working days

Specifications / technical features

• Product series: adlatus (adlatus 300)
• Article number: 08-AT-200-100-M-Sch
• Width: 2000 mm
• Depth: 1000 mm
• Height adjustment: 720–1120 mm (electric, 2 lifting columns)
• Adjustment speed: 38 mm/s (no load)
• Static surface load: 150 kg
• Top thickness: 22 mm, melamine resin coating (DIN 68765)
• Edges: light grey antistatic ABS edge
• Top core: particleboard according to EN309/EN312 (emission class E1)
• Frame / skids: profile steel tube, skids 60×30×3 mm, frame 50×25×2.5 mm
• Control unit: incl. connection cable and plug, control with up/down pushbutton
• Duty cycle: 10 % (6 min/h) / Standby consumption: 0.1 W
• Optional: autonomous operation via battery box (accessory)
• Color: RAL7035 (light grey)
• Fire / migration safety: coating normally flammable (B2) according to DIN 4102; certificate of non-harmful migration behavior
• CE conformity and applied standards: see CE declaration (Machinery Directive, EMC, DIN EN ISO 12100, DIN EN 1570-1)
• Condition: B-stock – top slightly soiled / damaged
• Delivery time: approx. 5 working days
