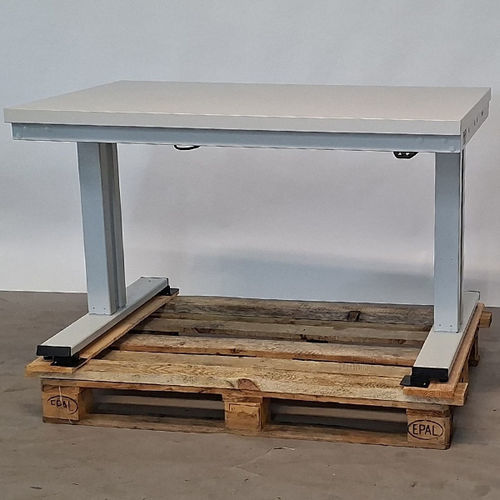

Steel workbench 08-WT-125-080-HE4-Sch

industrialfor workshopsheight-adjustable

Product description

• Worktop with high-pressure laminate (HPL) surface, thickness 40 mm. Top layer 0.8 mm light grey HPL according to DIN EN 438; splash-proof, stain-resistant, high abrasion resistance as well as high scratch and impact resistance; resistant to weak acids and alkalis and common household chemicals and solvents; surface normally flammable (B2) according to DIN 4102. Core made of particleboard according to EN309/EN312 (emission class E1). Underside with balancing backer. All-round light grey antistatic ABS edge.
• System base, W1240 x D750 x H700-1100 mm (system base information from product text).
• 2 double lifting columns (80 x 50 mm, tested according to EN 60335-1) including control unit and power cable with plug. Skids made of profile steel tube (100 x 30 x 3 mm) including leveling feet. Complete frame from profile steel tube (50 x 25 x 2.5 mm) located below the worktop. Control element with up/down button.
• Electric adjustment by 2 double lifting columns via integrated linear drive. Quiet, stepless and fully synchronous adjustment of working height even under asymmetric load. Adjustment speed 38 mm/s (no load). Duty cycle 10% (6 minutes per hour or 2 minutes continuous at full load). Standby power consumption only 0.1 W.
• EC declaration of conformity: product meets the essential requirements of the following harmonisation legislation: a) Directive 2006/42/EC (Machinery Directive) b) Directive 2014/30/EU (EMC). Applied harmonised standards include: DIN EN ISO 12100:2011-03; DIN EN 1570-1 (safety requirements for lifting tables) (excluding chapters 5.5.5, 5.6.11 and 5.10).
• Note: System can optionally be operated autonomously via a battery box (accessory) (no permanent mains connection required).
• Colour: RAL7035 light grey.
• Condition (B-grade): Top slightly soiled and damaged; small scratches and paint damage on the frame.

Technical data (table)
Width: 1250 mm
Uniform load stationary: 300 kg
Depth: 800 mm
Height from: 740 mm
Height to: 1140 mm
Top type: High-pressure laminate worktop
Top thickness: 40 mm

Specifications / technical characteristics

• Series/Model: adlatus 300 (Werktisch Serie adlatus)
• Worktop material: High-pressure laminate (HPL), 40 mm thickness; antistatic ABS edges
• Base / frame: Profile steel tube (50 x 25 x 2.5 mm); skids profile steel tube 100 x 30 x 3 mm with leveling feet
• Drive: 2 double lifting columns (80 x 50 mm), linear drive, incl. control unit and power cable
• Adjustment: electric, synchronous, 38 mm/s (no load)
• Duty cycle: 10% (6 min/h) or 2 min full load; standby consumption 0.1 W
• Load capacity / surface load: max. 300 kg (stationary)
• Height range: 740–1140 mm
• Worktop dimensions: W 1250 x D 800 mm
• Top core: Particleboard according to EN309/EN312 (E1)
• Surface flammability: B2 according to DIN 4102
• CE / standards: Directives 2006/42/EC, 2014/30/EU; standards e.g. DIN EN ISO 12100:2011-03, DIN EN 1570-1
• Colour: RAL7035 light grey
• Condition note: slight soiling, damage to top and small scratches/paint damage to the frame (B-grade)
