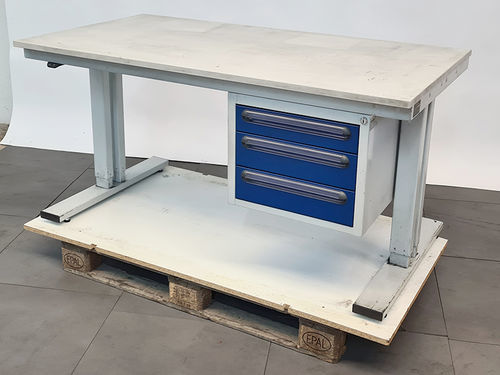

Steel workbench 08-WT-150-080-M+E-US-2-3A.11-Sch
for workshopswith drawer3-drawer

Steel workbench - 08-WT-150-080-M+E-US-2-3A.11-Sch - RAU - for workshops / with drawer / 3-drawer
Steel workbench - 08-WT-150-080-M+E-US-2-3A.11-Sch - RAU - for workshops / with drawer / 3-drawer
Steel workbench - 08-WT-150-080-M+E-US-2-3A.11-Sch - RAU - for workshops / with drawer / 3-drawer - image - 2
Steel workbench - 08-WT-150-080-M+E-US-2-3A.11-Sch - RAU - for workshops / with drawer / 3-drawer - image - 3
Steel workbench - 08-WT-150-080-M+E-US-2-3A.11-Sch - RAU - for workshops / with drawer / 3-drawer - image - 4
Steel workbench - 08-WT-150-080-M+E-US-2-3A.11-Sch - RAU - for workshops / with drawer / 3-drawer - image - 5
Steel workbench - 08-WT-150-080-M+E-US-2-3A.11-Sch - RAU - for workshops / with drawer / 3-drawer - image - 6
Steel workbench - 08-WT-150-080-M+E-US-2-3A.11-Sch - RAU - for workshops / with drawer / 3-drawer - image - 7
Steel workbench - 08-WT-150-080-M+E-US-2-3A.11-Sch - RAU - for workshops / with drawer / 3-drawer - image - 8
Steel workbench - 08-WT-150-080-M+E-US-2-3A.11-Sch - RAU - for workshops / with drawer / 3-drawer - image - 9
Add to favorites
Compare this product

Characteristics

Worktop material
steel
Applications
for workshops
Other characteristics
with drawer, 3-drawer, height-adjustable, electric
Length

1,500 mm
(59 in)

Width

800 mm
(31 in)

Height

Min.: 720 mm
(28 in)

Max.: 1,120 mm
(44 in)

Load

300 kg
(661.4 lb)

Description

Product description
  • Worktop with 22 mm melamine resin coating.
  • Top and bottom with light-grey melamine resin direct coating; melamine coating conforms to DIN 68765. Splash-proof and dirt-resistant. Surface properties according to EN14322/EN14323: abrasion resistance Class 3A, scratch resistance N>1.5, stain resistance level ≥3 (e.g. acetone, alcohol, organic solvents, petroleum ether), crack resistance level ≥3, cigarette ember resistance level 3, water vapour resistance level 4. Certification for migration behaviour (suitable for use in food-related areas). Cover material normally flammable (B2) according to DIN 4102. Core board made of particleboard per EN309/EN312 (emission class E1). All-round light-grey antistatic ABS edge.
  • System underframe: W1490 x D750 x H700-1100 mm.
  • Electrical components: 2 double lift columns (80x50 mm, tested according to EN 60335-1) including control unit and connection cable with plug. Skids made of profile steel tube (100x30x3 mm) with leveling feet. Complete frame made of profile steel tube (50x25x2.5 mm) mounted under the worktop. Control unit with up/down push buttons.
  • Electric adjustment via 2 double lift columns with integrated linear actuators. Quiet, stepless and synchronous height adjustment even under asymmetric loads. Adjustment speed 38 mm/s (no load). Duty cycle 10% (6 minutes per hour or 2 minutes continuous operation at full load). Standby power consumption 0.1 W.
  • CE declaration of conformity: product complies with, among others, Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. Applied harmonised standards include DIN EN ISO 12100:2011-03 and DIN EN 1570-1 (safety requirements for lifting tables, part 1).
  • Note: system can optionally be operated autonomously via a battery box (accessory) (no permanent mains connection required).
  • Colour: RAL 7035 light grey.
  • Condition (as stated on the page): worktop soiled and damaged; frame soiled and damaged; no key available.


Equipment
  • 1 underframe container on the right with the following configuration: 3 x drawers (1 x H90, 2 x H120 mm).
  • Drawers: internal dimensions W390 x D560 mm, load capacity 35 kg, 90% extension. Usable drawer height corresponds to front height minus 15 mm. Drawer box fully closed to accept drawer partition sets optimally.
  • Continuous, partially integrated handle strip (including labelling strip).
  • Central lock for the underframe container.


Technical characteristics / specifications
  • Width: 1500 mm
  • Depth: 800 mm
  • Height adjustable from 720 mm to 1120 mm
  • Static surface load: 300 kg
  • Number of drawers: 3
  • Worktop type: melamine-coated worktop
  • Worktop thickness: 22 mm
  • Underframe dimensions: W1490 x D750 x H700-1100 mm (system underframe)
  • Drive: 2 double lift columns (80x50 mm) with integrated linear actuators; synchronous, quiet electric height adjustment
  • Adjustment speed: 38 mm/s (no load)
  • Duty cycle: 10%
  • Standby power consumption: 0.1 W
  • Frame material: profile steel tube (e.g. frame 50x25x2.5 mm; skids 100x30x3 mm)
  • Worktop surface: light-grey melamine resin direct coating, antistatic ABS edge
  • Frame / element colour: RAL 7035 light grey
  • Certifications / standards: CE conformity (incl. Machinery Directive 2006/42/EC, EMC 2014/30/EU); applied standards DIN EN ISO 12100, DIN EN 1570-1 (see page for exceptions)
