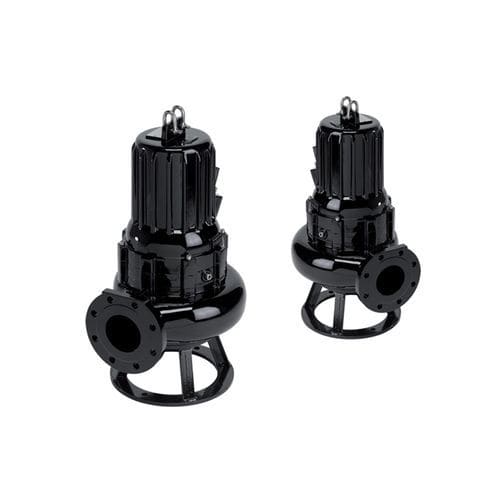

Impeller pump RH seriesfor wastewaterwastewaterelectric
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- for wastewater, wastewater
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary
- Protection level
- submersible
- Other characteristics
- with open impeller
- Flow
80 m³/h, 140 m³/h, 210 m³/h
(2,825.17334 ft³/h, 4,944.05334 ft³/h, 7,416.08001 ft³/h)- Head
20 m, 28 m, 48 m
(65'07" , 91'10" , 157'05" )- Power
2.8 kW, 5.2 kW, 11.5 kW
(3.81 hp, 7.07 hp, 15.64 hp)
Description
Product description
Wastewater electric submersible pumps with single-channel impeller. Suitable for free standing wet installation (with rigid or flexible pipeline connection) and for wet installation on automatic coupling foot.
Range
Orange line
Applications
Performance table (50Hz)
Series | CAPACITY UP TO (50Hz) | HEAD UP TO (50Hz) | POWER UP TO (50Hz) | SOLID PASSAGE
RH65M | 80 m3/h | 28 m | 2.8 kW | 42 mm
RH80M | 140 m3/h | 48 m | 11.5 kW | 76 mm
RH100M | 210 m3/h | 20 m | 5.2 kW | 80 mm
Technical characteristics / specifications
Wastewater electric submersible pumps with single-channel impeller. Suitable for free standing wet installation (with rigid or flexible pipeline connection) and for wet installation on automatic coupling foot.
Range
Orange line
Applications
- Domestic sewage collection
- Storm water collecting
- Dewatering
- Livestock systems
- Fish farming
Performance table (50Hz)
Series | CAPACITY UP TO (50Hz) | HEAD UP TO (50Hz) | POWER UP TO (50Hz) | SOLID PASSAGE
RH65M | 80 m3/h | 28 m | 2.8 kW | 42 mm
RH80M | 140 m3/h | 48 m | 11.5 kW | 76 mm
RH100M | 210 m3/h | 20 m | 5.2 kW | 80 mm
Technical characteristics / specifications
- Series: RH65M, RH80M, RH100M
- Capacity up to (50Hz): RH65M 80 m3/h; RH80M 140 m3/h; RH100M 210 m3/h
- Head up to (50Hz): RH65M 28 m; RH80M 48 m; RH100M 20 m
- Power up to (50Hz): RH65M 2.8 kW; RH80M 11.5 kW; RH100M 5.2 kW
- Solid passage: RH65M 42 mm; RH80M 76 mm; RH100M 80 mm
- Suitable for free standing wet installation (rigid or flexible pipeline connection) and for wet installation on automatic coupling foot
