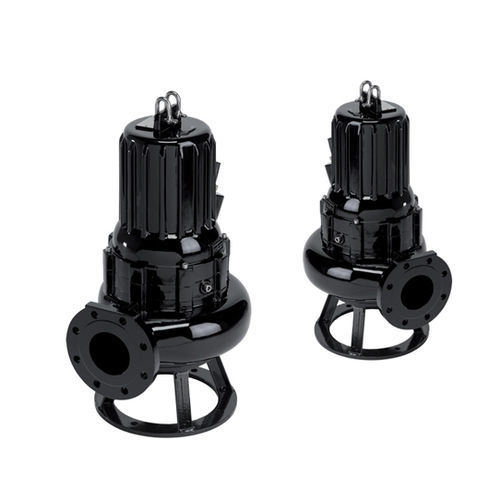

Vortex pump RH serieswastewaterelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- vortex
- Fluid
- wastewater
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary
- Flow
85 m³/h, 130 m³/h, 200 m³/h
(3,001.74667 ft³/h, 4,590.90667 ft³/h, 7,062.93334 ft³/h)- Head
16.5 m, 18 m, 20.5 m
(54'01" , 59'00" , 67'03" )- Power
3.2 kW, 5.5 kW, 9.5 kW
(4.35 hp, 7.48 hp, 12.92 hp)- Input diameter
Max.: 100 mm
(3.937 in)Min.: 65 mm
(2.559 in)
Description
Product description
Electric submersible wastewater pumps with vortex impeller. Designed for free-standing wet installation (with rigid or flexible pipeline connection) and for wet installation on automatic coupling foot. Suitable for handling wastewater containing solids; solids passage depends on model.
Product line
Orange line
Applications
Series data table (50Hz)
Series | CAPACITY UP TO (50Hz) | HEAD UP TO (50Hz) | POWER UP TO (50Hz) | SOLID PASSAGE
RH65V | 85 m3/h | 18 m | 3.2 kW | 65 mm
RH80V | 130 m3/h | 16.5 m | 5.2 kW | 80 mm
RH100V | 200 m3/h | 20.5 m | 9.5 kW | 100 mm
Characteristics / technical specifications
Electric submersible wastewater pumps with vortex impeller. Designed for free-standing wet installation (with rigid or flexible pipeline connection) and for wet installation on automatic coupling foot. Suitable for handling wastewater containing solids; solids passage depends on model.
Product line
Orange line
Applications
- Fish farming
- Domestic sewage collection
- Dewatering
- Livestock systems
Series data table (50Hz)
Series | CAPACITY UP TO (50Hz) | HEAD UP TO (50Hz) | POWER UP TO (50Hz) | SOLID PASSAGE
RH65V | 85 m3/h | 18 m | 3.2 kW | 65 mm
RH80V | 130 m3/h | 16.5 m | 5.2 kW | 80 mm
RH100V | 200 m3/h | 20.5 m | 9.5 kW | 100 mm
Characteristics / technical specifications
- Series: RH65V, RH80V, RH100V
- Capacity (50Hz): RH65V 85 m3/h; RH80V 130 m3/h; RH100V 200 m3/h
- Head (50Hz): RH65V 18 m; RH80V 16.5 m; RH100V 20.5 m
- Power (50Hz): RH65V 3.2 kW; RH80V 5.2 kW; RH100V 9.5 kW
- Solid passage: RH65V 65 mm; RH80V 80 mm; RH100V 100 mm
- Impeller type: vortex impeller
- Installation: free-standing wet installation (rigid or flexible pipeline connection) or wet installation on automatic coupling foot
