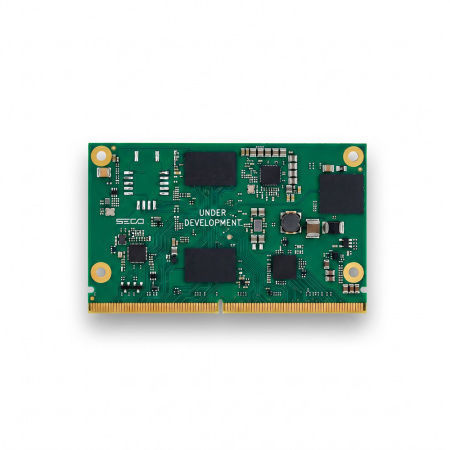

SMARC® Rel. 2.1.1 computer-on-module SOM-SMARC-Dragonwing-IQ8

QualcommLVDSUSB 2.0

Overview
SMARC® Rel. 2.1.1 module for edge and embedded applications equipped with Qualcomm® Dragonwing™ IQ8 application processors. Designed for integration on a SMARC carrier board for industrial and commercial use.

Highlights

• CPU Qualcomm® Dragonwing™ IQ8 QCS8275-AA; QCS8275-AC
• AI Qualcomm® Hexagon™ Embedded NPU up to 40 TOPS
• Memory Up to 32GB LPDDR5/LPDDR5X soldered
• Connectivity 1x Gigabit Ethernet; 1x 2.5 Gigabit Ethernet

Security & Software

• Built-in Secure Boot ensuring system integrity from first boot
• OTA updates for secure remote software distribution
• Device monitoring and management support
• Yocto-based OS integration (Clea OS, Yocto Linux); Arduino compatibility
• Docker support for containerized applications
• Security: TPM 2.0 (SLB9678), FIPS 140-3 compliant

Video & Multimedia

• Adreno™ A623 GPU up to 877 MHz
• 2 independent displays: DP 1.4 4K@120Hz; LVDS single/dual channel (max 1920x1200@60Hz) or DSI 4-lane 4K@120Hz (factory option)
• MIPI-CSI: 1x 2-lane + 2x 4-lane with dedicated I2C
• Video support up to 2x 4K@120Hz

Storage & Memory

• On-board UFS 3.1 Gen4 2-lane up to 1TB (boot device)
• SDIO interface (boot device)
• Up to 32GB LPDDR5/LPDDR5X soldered memory

Connectivity & I/O

• Networking: 1x Gigabit Ethernet; 1x 2.5 Gigabit Ethernet
• USB: up to 5x USB 2.0; factory options for 2x USB SS 5Gbps or 1x USB SS 10Gbps
• PCIe: 1x PCIe x4 Gen4 or 2x PCIe x2 Gen4 (factory option)
• Audio: 2x I2S
• Serial: 2x 4-wire UART; 2x 2-wire UART
• Other: Boot SPI, general SPI, QSPI, PMIC I2C (SMBus), I2C, 8x GPIO, JTAG, ACPI

Product Notes
Module complies with SMARC Rel. 2.1.1 and requires a compatible carrier board for full I/O access. Target applications include industrial edge computing, HMI, vision and AI inference at the edge.

Technical specifications

• Description: SMARC® Rel. 2.1.1 module with Qualcomm® IQ8 Applications Processors
• CPU: Qualcomm® Dragonwing™ IQ8 QCS8275-AA; QCS8275-AC
• Memory: Up to 32GB LPDDR5/LPDDR5X soldered
• Graphics: Adreno™ A623 GPU up to 877MHz
• Video Interfaces: DP 1.4 4K@120Hz; LVDS Single/Dual Channel (max 1920x1200@60Hz) or DSI 4-lane 4K@120Hz (factory option); 1x MIPI-CSI 2-lane; 2x MIPI-CSI 4-lane
• Video Resolution: Up to 2x 4K@120Hz
• Mass Storage: UFS 3.1 Gen4 2-lane up to 1TB (boot); SDIO interface
• Networking: 1x Gigabit Ethernet; 1x 2.5 Gigabit Ethernet
• USB: Up to 5x USB 2.0; options for USB SS
• PCI: 1x PCI-e x4 Gen4 or 2x PCI-e x2 Gen4 (factory option)
• Audio: 2x I2S
• Serial Ports: 2x 4-wire UART; 2x 2-wire UART
• Other Interfaces: Boot SPI; SPI; QSPI; PMIC I2C (SMBus); I2C; 8x GPIO; JTAG; ACPI
• Security: TPM 2.0, SLB9678, FIPS 140-3 compliant
• Power Supply: +5VDC ±5%
• Operating System: Clea OS, Yocto Linux; Arduino compatibility
• Operating Temp: Commercial 0°C to +60°C; Industrial -40°C to +85°C
• Dimensions: 82 x 50 mm
• Part Number: PN-SOM-SMARC-IQ8
