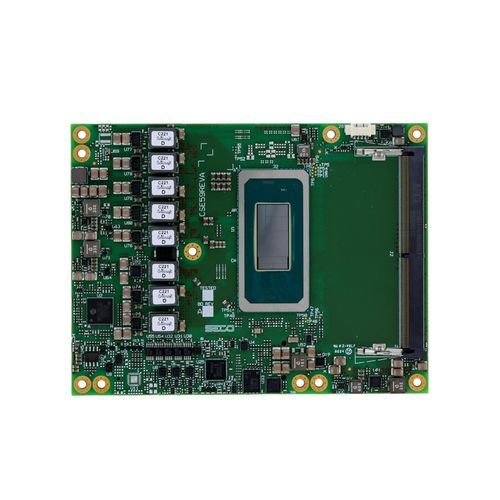

COM Express computer-on-module PN-SOM-COMe-BT6-MTL

Intel® Core™ UltraIntel® Core™ Ultra 7 165HIntel® Core™ Ultra 7 155H

Product overview
COM Express® 3.1 Type 6 basic module SOM-COMe-BT6-MTL with support for Intel® Core™ Ultra processor family (Meteor Lake H and U variants). Designed for embedded and industrial computing applications requiring advanced graphics and flexible I/O.

Highlights

• CPU Supports Intel® Core™ Ultra processors (Meteor Lake) in H- and U-series SKUs.
• Graphics Integrated Intel® Xe LPG graphics up to 8 Xe cores (128 EU), up to 4 independent displays.
• Memory 2x DDR5 SO-DIMM slots, DDR5-5600 IBECC, up to 64 GB.

Security & compliance

• Built-in Secure Boot to protect system integrity at startup.
• OTA secure updates and remote device monitoring (Clea integration).
• Yocto-based OS support and compliance-ready design (EN18031-1 documentation available on request).

Processor families and selectable SKUs

• Meteor Lake-H (20/28/65 W): examples include Core™ Ultra 7 165H (vPro), 155H; Core™ Ultra 5 135H (vPro), 125H.
• Meteor Lake-U (12/15/28 W): examples include Core™ Ultra 7 165U (vPro), 155U; Core™ Ultra 5 135U (vPro), 125U.

Key features

• Video: 3x DDI (DP/HDMI), 1x eDP or single/dual-channel 18/24-bit LVDS (factory option), 2x MIPI CSI (factory option).
• Video resolution: HDMI up to 8K@60 (HDMI 2.1); DP 2.1 up to 8K@60 / 5K@120; eDP 1.4b up to 4K@120 HDR; max 4x 4K@60Hz.
• Storage: optional on-board NVMe (PCIe x4) up to 512 GB; up to 2x SATA Gen3.2 (factory alternative).
• Networking: 1x NBase-T Ethernet (Intel® I226) supporting 2.5GbE and TSN.
• Interfaces: up to 4x USB 10 Gbps, up to 8x Hi-Speed USB, HD audio (SoundWire), 2x UART, SPI, I2C, SM Bus, TPM 2.0 (option), watchdog, 4x GPI / 4x GPO.
• PCIe: PEG x8 Gen4 (H-series only); PEG x4 Gen4 (factory alt.); 8x PCIe Gen4 lanes (groupable).
• Power: main +8 VDC to +20 VDC; auxiliary +5V_SBY, +3V_RTC.

Technical specifications

• Form factor: COM Express® 3.1 Type 6 Basic Module (125 x 95 mm).
• Memory: 2x DDR5 SO-DIMM, DDR5-5600 IBECC, up to 64 GB.
• Operating systems: Microsoft® Windows 10 IoT Enterprise 2019/2021 LTSC; Yocto (Kirkstone).
• Operating temperature (commercial): 0°C to +60°C (measured at SECO standard heatspreader; system cooling affects values).
• Part number: PN-SOM-COMe-BT6-MTL.
