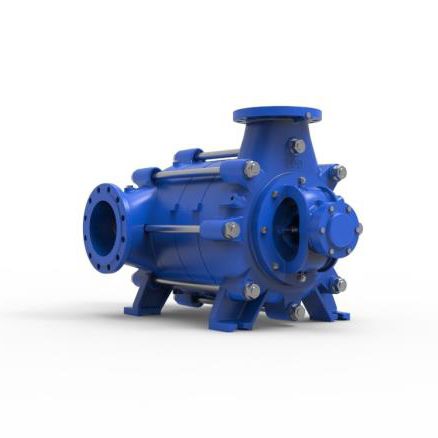

Water pump ARS series

with electric motorcentrifugalindustrial

Design Features • Multistage pumps are used in applicatioıns which are needed to high pressure. • Stages are connection serial and it assemble to output of one of the stage is input of other stage. • The total pressure provided by the pressure in each stage. • The reason of choosing multistage pump is pressure too much from Capacity. • Balancing holes are getting high axial thrust. Impellers are balancing with dynamically. • Input flange is same side with coupling and right side.And output flange is opposite direction and top side. • Mechanical seal is using. • At both ends of the pump heavy-duty cilindrical roller bearings in high-temprature resistant. • It is dissasamble very easy because there is no stages on shaft. Technicial Specifications • Capacity : up to 700 m³/h • Head : 550 m • Speed : up to 2900 rpm - (60Hz)* • Operating Temperature : -10 °C’ to +110 °C • Casing Pressure (Pmaks) : 30 bar (63 bar) Usage places • Pressure System • Domestic water supply systems • Garden Watering Systems • Power Stations • Fire Fighting System • Boiler feed and condensate systems • Hvac System
