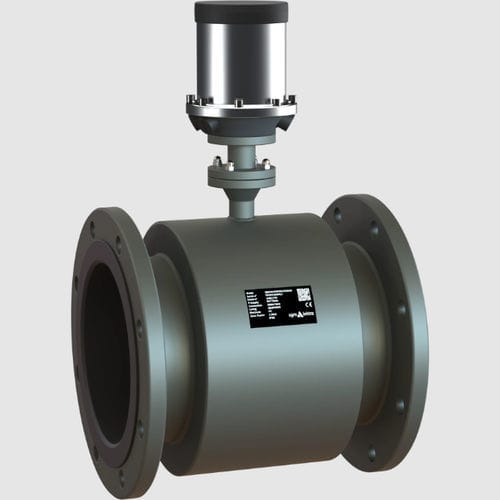

Electromagnetic flowmeter RBKMAG

volumeDN50 - 2"Modbus RTU

Specific for installations with “0 diameters” near curves, fittings etc … ABS sensor and lining Battery powered, 6 years battery life; 12÷24Vdc Description Battery-powered RBKmag flowmeters do not require external power supply, therefore they are a valid alternative to conventional mechanical measuring systems and in isolated applications without power supply. RBKmag thanks to the particular internal geometry is less influenced by the proximity of disturbing elements such as fittings, curves etc. and can therefore be installed at “ZERO DIAMETERS”. The RBKmag meter is suitable for use with a wide range of conductive liquids, also chemically aggressive, thanks to the possibility of selecting the most suitable electrode material for the application. Flow rate range - RBKMAG is able to process signals from fluids with flow rates of up to 10m / s in both directions (bidirectional meter). Reverse Flow - Allows measure and totalization of reverse flow Output test - Frequency output: the transmitter can force the output signal from 0.1 to 5000 Hz to a test value. Startup time - 0.5s from zero flow Cutoff - Adjustable 0.0 ÷ 9.9% of the Qmax. Below the set value the display of the instantaneous flow and the outputs are forced to zero. Humidity Limits - 0-100% RH to 150 °F (65 °C), not condensing. Damping - Adjustable between 1 and 99 seconds.
