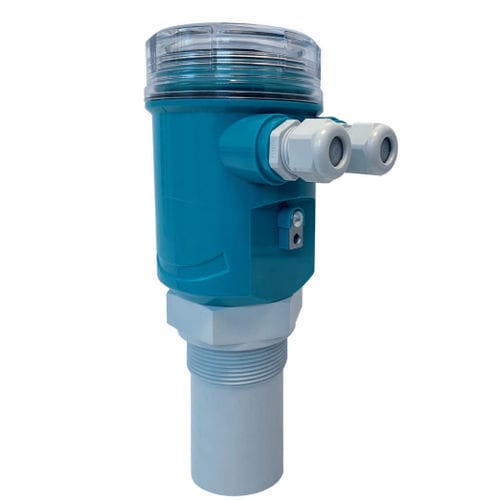

Ultrasonic flowmeter

Venturivolumethreaded

Compact system suitable to be installed upstream of hydraulic modelers (weirs, venturi, palmer bowlus) Solution with excellent price performance ratio Instantaneous and totalized flow measurement No. 2 freely programmable relays MODBUS; Bluetooth communication protocol Remote control via Smartphone Flowmeter is an ultrasonic flow transmitter, temperature-compensated and suitable for connection with MODBUS RTU acquisition systems. FLOWMETER in addition to an analog output includes two freely addressable relay for flow threshold or for totalizer pulse output. Compact – Suitable for upstream installation in weir, Venturi, Palmer Bowlus (standard and non-standard) G 2″A / PP threaded connection + nr. 1 2″ BSP/PP fixing bolt 4÷20mA output with instantaneous flow transmission Relay nr. 1 for impulses/volume transmission Relay nr. 2 for threshold alarm or diagnostic Setting by keyboard/display removable module (opt.) or via BLUETOOTH with Android APP (opt.) MODBUS RTU output. Housing with osmotic filter
