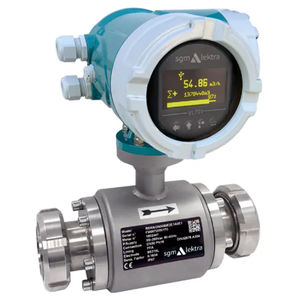

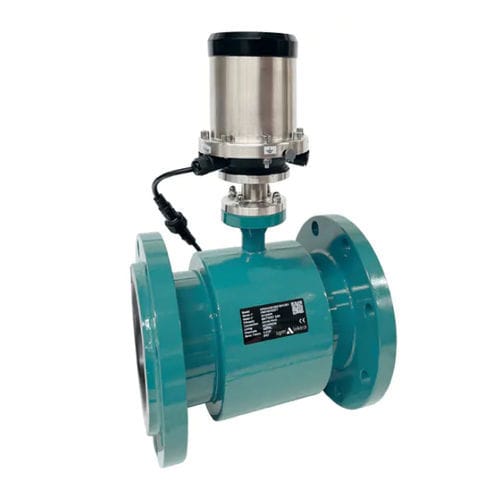

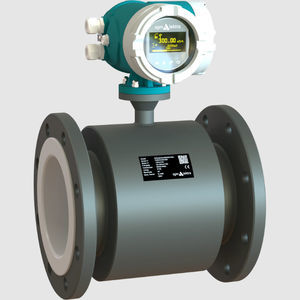

Electromagnetic flowmeter RBMAG

volumefor conductive liquidsDN65 - 2"1/2

Flow measurement for conductive liquids GPRS data transmission Battery powered, 6 years autonomy; 12÷24Vdc Analog, impulsive and MODBUS RTU outputs Parameter programming via remote module Description Battery powered RBmag meters do not require an external power supply, therefore they are a valid alternative to conventional mechanical measuring systems and in isolated applications without power supply. Additional information Flow rate range - Process signals from fluids with flow rates of up to 10m / s in both directions (bidirectional meter) Sensor material - SS321 Housing material - ABS, SS316 Fluid conductivity - >20 μS/cm Power supply - Battery, 6 years life; 12÷24Vdc (opt.) Output - Analog: passive 4÷20mA, Pulse: open collector Reverse Flow - Instant measure and totalization of reverse flow Flow Cutoff - Adjustable in units of flow measurement. Below the set value, the instantaneous flow is displayed and the outputs are forced to zero Relative humidity - <=95% RH Response time (integration) - Adjustable between 0.1 and 99 seconds
