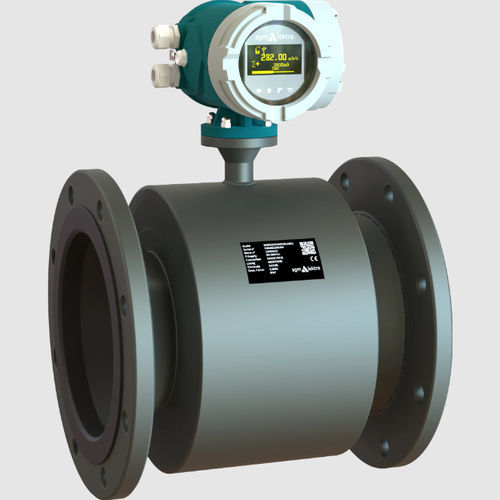

Electromagnetic flowmeter RKMAG

volumefor chemicalsfor aggressive media

Specific for installations with “0 diameters” near curves, fittings etc… Power supply 85÷265Vac; 12Vdc; 20÷30Vdc/Vac Remote control via Smartphone Description SGM-LEKTRA presents a new type of electromagnetic flowmeter with plastic sensors: RKmag. Because of its particular inner shape the mounting of the unit requires no straight pipe lengths before and after the meter. The converter is equipped with a large, bright, removable O-LED display and can mount a pen-drive USB data logger. The configurable outputs can be analogic, pulse and MODBUS RTU and alarm messages are managed by 2 configurable relays.RKmag is suitable for the use with a wide range of conductive liquids, even chemically aggressive: the electrodes material can be selected according to the chemical properties of the fluid. Additional information Sensor material - SS321 Housing material - epoxy painted aluminium Electrodes material - Hastelloy C, SS316L Fluid conductivity - >5μS/cm Power supply - 85÷265Vac; 12Vdc; 20÷30Vdc/Vac Consumption - 6W, max. 8W Data Logger - Internal data logger to USB pen drive (opt.) Output - 2 relays, 4÷20mA, Frequency, Impulsive Input signals - 1 digital input, 2 active analog inputs Reverse Flow - Instant measure and totalization of reverse flow Flow Cutoff - Adjustable. Below selected value, instantaneous flow and outputs are driven to the zero flow rate signal level Relative humidity - 0-100% RH to 150 °F (65 °C), not condensing Response time (integration) - Adjustable between 1 and 99 seconds
