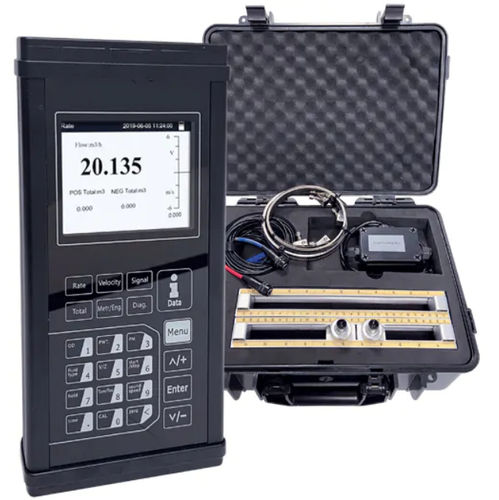

Ultrasonic flowmeter SGM-101HvolumeDN25 - 1"DN1200 - 48"
Add to favorites
Compare this product
Characteristics
- Technology
- ultrasonic
- Type
- volume
- Pipe diameter
- DN25 - 1", DN1200 - 48"
- Installation
- clamp-on, portable, suspended
- Material
- aluminum
- Communication
- 4-20 mA, Modbus RTU
- Protection level
- IP68, IP54
- Other characteristics
- digital, with LCD display
- Volumetric flow rate
Max.: 24,000 m³/h
(847,552.0013 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)- Precision
1 %
Description
Portable system suitable for conductive and non-conductive fluids even with the presence of suspended material (<10g / l; <01mm)
Clamp-on sensors on metric ruler
Measurement range DN25 ÷ DN1200 Datalogger on SD card
Backlit display
Battery life: max 6h
MODBUS RTU digital communication
Description
The SGM-101H flow measurement system consists of a digital converter and two ultrasonic transducers. The transit time of a luid, inside a cylindrical section tube, is the operating principle on which the instrument is based to calculate the instantaneous flow rate value. SGM-101H has an active 4 ÷ 20mA output and the MODBUS RTU communication port.
Catalogs
Product catalogue | 2023_Rev1
216 Pages
