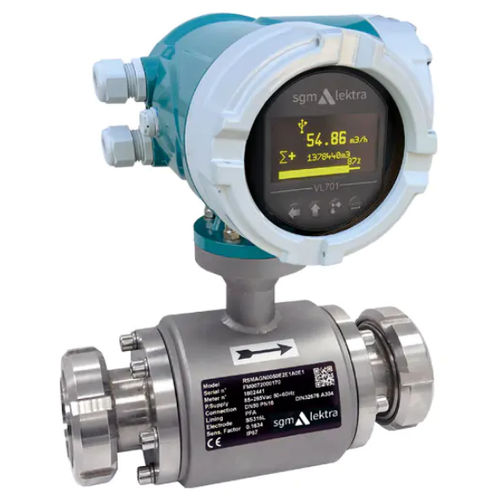

Electromagnetic flowmeter RSMAG

volumefor conductive liquidsDN15 - 1/2"

Flow measurement for conductive liquids Connections DIN 11851 and CLAMP DIN 32676 PFA coatings Power supply 85÷265Vac; 12Vdc; 20÷30Vdc/Vac Datalogger on USB pendrive Remote control via Smartphone Description RSmag flowmeters are suitable for applications in food and pharmaceutical industries. DIN or Clamp ISO 2852 process connection are suitable for applications with milk, beer or other drinks. Manufactured completely in stainless steel with the option for PFA lining makes RSmag suitable for pharmaceutical application. Additional information Sensor material - SS304 Housing material - epoxy painted aluminium Electrodes material - Hastelloy C, SS316L, Tantalium, Titanium Fluid conductivity - >5μS/cm Data Logger - Internal data logger to USB pen drive Output - 2 relays, 4÷20mA, Frequency, Impulsive Input signals - 1 digital input, 2 active analog inputs Reverse Flow - Instant measure and totalization of reverse flow Startup time - 0.5s from zero flow Flow Cutoff - Adjustable. Below selected value, instantaneous flow and outputs are driven to the zero flow rate signal level Relative humidity - 0-100% RH to 150 °F (65 °C), not condensing Response time (integration) - Adjustable between 1 and 100 seconds
