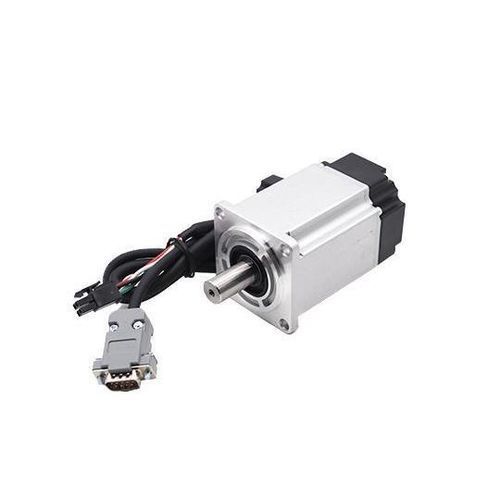

AC servomotor 60B series

220 Vwith coderstainless steel

Features: 17-bit 23-bit absolute value photoelectric encoder, with high-end and high responsiveness;Speed: Good high-speed performance, generally rated speed can reach 3000 rpm, maximum speed can reach 6000 rpm;Adaptability: Strong overload resistance, can withstand load three times the rated torque, especially suitable for occasions with instantaneous load fluctuations and requiring fast start;Stability: Smooth low-speed operation, no stepping operation phenomenon similar to stepper motors will occur during low-speed operation. Suitable for occasions with high-speed response requirements;Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds;Comfort: Heat and noise are significantly reduced.Product SpecificationsModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Body Length (mm)60BST-C00630-2B12201.60.64Without Brake74.560BST-C00630-2B1-Z2201.60.64With Brake9860BST-C01330-2B12202.61.27Without Brake9360BST-C01330-2B1-Z2202.61.27With Brake116.5Motor SpecificationsMotor Model60BST-CO0630-2B160BST-CO0630-2B1-Z60BST-CO1330-2B160BST-CO1330-2B1-ZRated Voltage (V)220220220220Rated Power (W)200200400400Rated Current (A)1.61.62.62.6Rated Torque (N·m)0.640.641.271.27Rated Speed (rpm)3000±10%3000±10%3000±10%3000±10%Maximum Speed (rpm)3600±10%3600±10%3600±10%3600±10%Line Back EMF Constant (V/Krpm)25253131Line Resistance (Ω)5.85.84.054.05Line Inductance (mH)9.89.86.56.5Moment of Inertia (10^3kg·m^2)0.280.280.520.52Torque Constant (Nm/A)0.40.40.490.49Electrical Time Constant (ms)1.691.691.61.6BrakeWithout BrakeWith BrakeWithout BrakeWith BrakeBody Length (L mm)74.59893116.5Outline drawingEncoder: 17-bit/23-bit absolute value photoelectric encoderRated speed: up to 3000 rpm, max 6000 rpmOverload resistance: up to 3x rated torqueLow-speed stability: no stepping operationDynamic response: acceleration/deceleration within tens of millisecondsReduced heat and noise
