AC servomotor 40
220 Vwith coderstainless steel

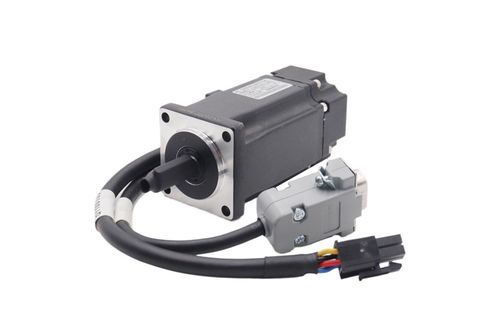

AC servomotor - 40 - Shanghai Siheng Motor Co., Ltd - 220 V / with coder / stainless steel
AC servomotor - 40 - Shanghai Siheng Motor Co., Ltd - 220 V / with coder / stainless steel
AC servomotor - 40 - Shanghai Siheng Motor Co., Ltd - 220 V / with coder / stainless steel - image - 2
AC servomotor - 40 - Shanghai Siheng Motor Co., Ltd - 220 V / with coder / stainless steel - image - 3
AC servomotor - 40 - Shanghai Siheng Motor Co., Ltd - 220 V / with coder / stainless steel - image - 4
Add to favorites
Compare this product

Characteristics

Type
AC
Voltage
220 V
Configuration
permanent magnet, stainless steel, with coder
Protection class
IP54
Number of poles
10-pole
Other characteristics
closed-loop
Power

100 W
(0.14 hp)

Max.: 100 W
(0.14 hp)

Min.: 100 W
(0.14 hp)

Intensity

1.39 A

Max.: 1.39 A

Min.: 1.39 A

Torque

0.16 Nm, 0.32 Nm, 0.64 Nm
(0.11801 ft.lb, 0.23602 ft.lb, 0.47204 ft.lb)

Max.: 1.1 Nm
(0.811318 ft.lb)

Min.: 0.32 Nm
(0.23602 ft.lb)

Rotational speed

3,000 rpm
(18,849.5559 rad.min-1)

Max.: 6,500 rpm
(40,840.7045 rad.min-1)

Min.: 3,000 rpm
(18,849.5559 rad.min-1)

Diameter

40 mm
(1.57 in)

Max.: 40 mm
(1.57 in)

Min.: 40 mm
(1.57 in)

Operating temperature

Max.: 50 °C
(122 °F)

Min.: -20 °C
(-4 °F)

Description

Technical Parameters Technical Specifications Motor Dimension Driver Dimension Standard wiring diagram Position control mode 2.2.2 Speed/Torque Mode Wiring Diagram Product Category: AC Servo Motor and driverTags: Brushless motor, Closed-cloop stepper motor, DC servo Motor, Motor Driver, PM Stepper motor, Stepper motor Key Features / Technical Specifications: Series: 40 Series Type: AC Servo Motor Brushless motor Closed-loop stepper motor compatible Can be used with DC servo Motor, Motor Driver, PM Stepper motor, Stepper motor Includes technical drawings and wiring diagrams (see images above) Motor and driver dimensions provided (see images above)
