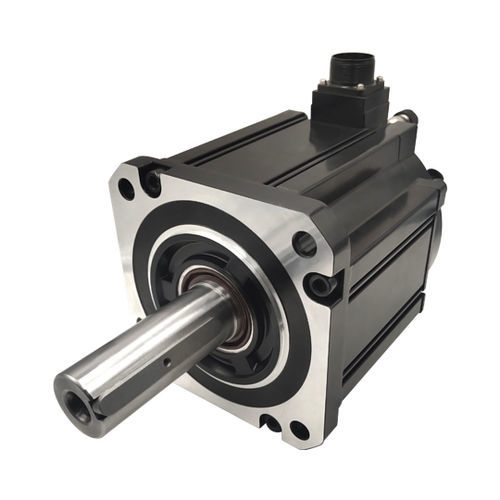

AC servomotor 180B series

380 VIP65high-torque

Product Details180B Series 17–bit/23–bit Absolute Value Five–pair–pole Servo MotorsFeatures: 17–bit/23–bit absolute value photoelectric encoder, with high–end and high–responsiveness characteristics.Speed: High–speed performance is good. Generally, the rated speed can reach 3000 rpm, and the maximum speed can reach 6000 rpm.Adaptability: Strong overload–resistant ability, able to bear three times the rated torque load. Particularly suitable for occasions with load fluctuations and requiring quick starts.Stability: Runs smoothly at low speeds, without the step–like running phenomenon similar to stepper motors. Suitable for occasions with high–speed response requirements.Timeliness: The dynamic response time for acceleration and deceleration of the motor is short, generally within tens of milliseconds.Comfort: Heat generation and noise are significantly reduced.Motor SpecificationsMotor Model180BST-M18615180BST-M28415180BST-M35015180BST-M48015Rated Power (W)2900440055007500Rated Line Voltage (V)380380380380Rated Line Current (A)10.014.517.823.0Rated Speed (rpm)1500150015001500Rated Torque (Nm)18.628.43548Peak Torque (Nm)547187.596Back EMF (V/1000min)137.5153172170Torque Constant (N.m/A)1.861.951.982.09Rotor Inertia (kg·m²)4.4X10⁻⁶6.6X10⁻⁶10.2X10⁻⁶14.6X10⁻⁶Inertia of Rotor with Brake (kg·m²)5.9X10⁻⁶8.0X10⁻⁶11.0X10⁻⁶15.6X10⁻⁶Winding (Phase) Resistance (Ω)1.10.90.620.42Winding Inductance (mH)15.213.910.98.7Electrical Time Constant (ms)13.815.417.515.9Maximum Speed (rpm)2500200020002000Encoder TypePhotoelectric Pulse Encoder/Absolute Value Encoder/Resolver… Motor Insulation ClassClass F Protection ClassIP65 Operating EnvironmentAmbient Temperature: –20°C – 40°C; Relative Humidity: ≤90% (non–condensing) Weight Winding TerminalTerminal Color – U (Red), V (Yellow), W (Blue), PE (Green–Yellow) Quantity of Output Wires4 Incremental Encoder Connector (15–pin)Terminal Numbers: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 1Terminal Leads: 5V, 0V, A+, B+, Z+, A-, B-, Z-, U+, V+, W+, U-, V-, W-, PE Absolute Value Encoder Connector (7–pin)Terminal Numbers: 2, 3, 4, 6, 7, 10Terminal Leads: E-, E+, SD-, 0V, SD+, +5V, PE L – Without Brake176200237283L – With Brake224248285331Shaft Diameter LR7979113113Shaft Diameter S35(-0.01 – 0)35(-0.01 – 0)42(0 – 0.016)42(0 – 0.016)Keyway Length QK60609090Keyway Width W10101212Shaft End Thread MM12 Depth 25 Outline drawingFeatures: 17-bit/23-bit absolute value photoelectric encoder, high-end and high responsivenessSpeed: Rated speed up to 3000 rpm, max 6000 rpmAdaptability: Overload resistance, withstands load 3x rated torqueStability: Smooth low-speed operation, no stepping phenomenonTimeliness: Short dynamic response time, tens of millisecondsComfort: Reduced heat and noiseTechnical Specifications:Rated Power: 2900W, 4400W, 5500W, 7500WRated Voltage: 380VRated Current: 10.0A, 14.5A, 17.8A, 23.0ARated Speed: 1500 rpmRated Torque: 18.6Nm, 28.4Nm, 35Nm, 48NmPeak Torque: 54Nm, 71Nm, 87.5Nm, 96NmBack EMF: 137.5, 153, 172, 170 V/1000minTorque Constant: 1.86, 1.95, 1.98, 2.09 N.m/ARotor Inertia: 4.4X10⁻⁶, 6.6X10⁻⁶, 10.2X10⁻⁶, 14.6X10⁻⁶ kg·m²Protection Class: IP65Operating Environment: –20°C to 40°C, ≤90% RH (non-condensing)
