AC servomotor 80S1-C0 series
220 Vpermanent magnetNEMA 24

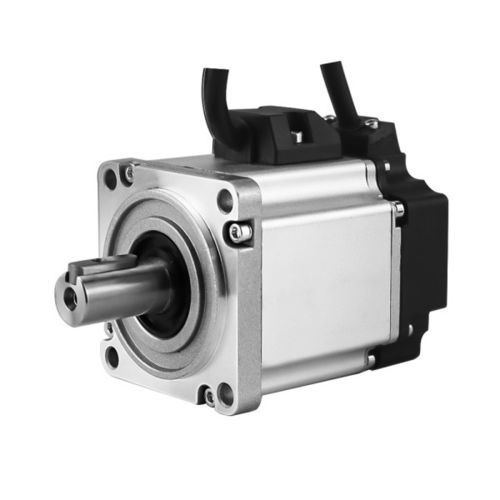

AC servomotor - 80S1-C0 series - Shanghai Siheng Motor Co., Ltd - 220 V / permanent magnet / NEMA 24
AC servomotor - 80S1-C0 series - Shanghai Siheng Motor Co., Ltd - 220 V / permanent magnet / NEMA 24
AC servomotor - 80S1-C0 series - Shanghai Siheng Motor Co., Ltd - 220 V / permanent magnet / NEMA 24 - image - 2
AC servomotor - 80S1-C0 series - Shanghai Siheng Motor Co., Ltd - 220 V / permanent magnet / NEMA 24 - image - 3
Add to favorites
Compare this product

Characteristics

Type
AC
Voltage
220 V
Configuration
permanent magnet, NEMA 24
Protection class
IP54
Number of poles
10-pole
Applications
for collaborative robots, industrial
Other characteristics
CANopen, EtherCAT, high-torque, high-precision, closed-loop
Power

200 W
(0.27 hp)

Intensity

1.6 A, 5.75 A

Torque

0.64 Nm
(0.47204 ft.lb)

Rotational speed

Min.: 3,000 rpm
(18,849.5559 rad.min-1)

Max.: 3,600 rpm
(22,619.4671 rad.min-1)

Diameter

60 mm
(2.36 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 50 °C
(122 °F)

Description

Technical Parameters Specifications Dimension Driver Size Standard wiring diagram Position control mode 2.2.2 Speed/Torque Mode Wiring Diagram Category: 5pole AC servo motor and driver-Incremental encoder, AC Servo Motor and driver Tags: Brushless motor, Closed-cloop stepper motor, DC servo Motor, Motor Driver, PM Stepper motor, Stepper motor Product type: AC Servo Motor and driverSeries: S1 SeriesFrame size: 80mmIncludes: AC Servo Motor and driver Key Features / Technical Specifications: 80mm frame size S1 Series AC Servo Motor and driver included Incremental encoder (5pole) Brushless motor technology Closed-loop stepper motor compatibility DC servo motor compatible PM stepper motor compatible Motor driver included
