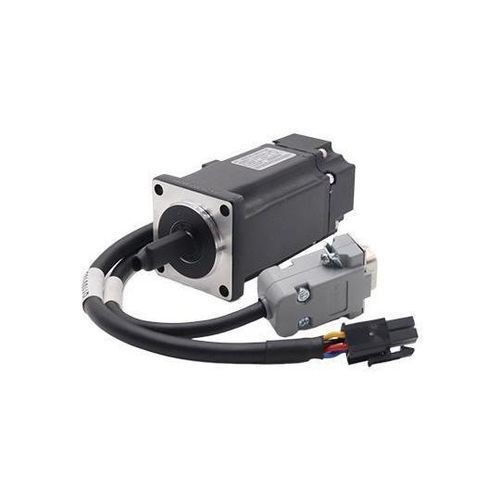

AC servomotor 40B series

220 Vhigh-speedperformance

Features: 17-bit 23-bit absolute value photoelectric encoder, with high-end and high responsiveness; Speed: Good high-speed performance, generally rated speed can reach 3000 rpm, maximum speed can reach 6000 rpm; Adaptability: Strong overload resistance, can withstand load three times the rated torque, especially suitable for occasions with instantaneous load fluctuations and requiring fast start; Stability: Smooth low-speed operation, no stepping operation phenomenon similar to stepper motors will occur during low-speed operation. Suitable for occasions with high-speed response requirements; Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds; Comfort: Heat and noise are significantly reduced. Product Specifications: Model: 40BST-M00330 220V 1.39A 0.32Nm 0.48kg 89.8mm Model: 40BST-M00330Z 220V 1.39A 0.32Nm 0.75kg 137.8mm Motor Specifications: Model40BST-M00130 (Standard)40BST-M00130Z (With Brake)40BST-M00330 (Standard)40BST-M00330Z (With Brake) Rated Power (W)5050100100 Rated Torque0.159 N·m / 1.62 kcf·cm0.159 N·m / 1.62 kcf·cm0.318 N·m / 3.25 kcf·cm0.318 N·m / 3.25 kcf·cm Detent Torque0.159 N·m / 1.62 kcf·cm0.159 N·m / 1.62 kcf·cm0.318 N·m / 3.25 kcf·cm0.318 N·m / 3.25 kcf·cm Max Instantaneous Torque0.56 N·m / 5.71 kcf·cm0.56 N·m / 5.71 kcf·cm1.11 N·m / 11.3 kcf·cm1.11 N·m / 11.3 kcf·cm Rated Speed (rpm)3000300030003000 Max Speed (rpm)6000600060006000 Rated Current (A)0.77 (0.86 with oil seal)0.77 (0.86 with oil seal)1.18 (1.24 with oil seal)1.18 (1.24 with oil seal) Detent Current (A)0.690.691.11.1 Max Instantaneous Current (A)2.502.503.923.92 Torque Constant0.2325 N·m/A / 2.372 kcf·cm/Asame0.2885 N·m/A / 2.944 kcf·cm/Asame Back EMF Constant24.37×10⁻³ V/r/minsame30.23×10⁻³ V/r/minsame Resistance (Ω)60.5460.5431.7131.71 Inductance (mH)53.3853.3837.137.1 Mechanical Time Constant (ms)2.963.171.852.11 Electrical Time Constant (ms)0.8820.8821.171.17 Rotor Inertia0.0288 gf·cm·s²0.0309 gf·cm·s²0.053 gf·cm·s²0.060 gf·cm·s² Rated Torque to Inertia Ratio9.128.5119.8817.46 Encoder: 17-bit / 23-bit absolute value photoelectric encoderRated speed: 3000 rpmMaximum speed: 6000 rpmOverload resistance: up to 3x rated torqueDynamic response time: tens of millisecondsReduced heat and noise
