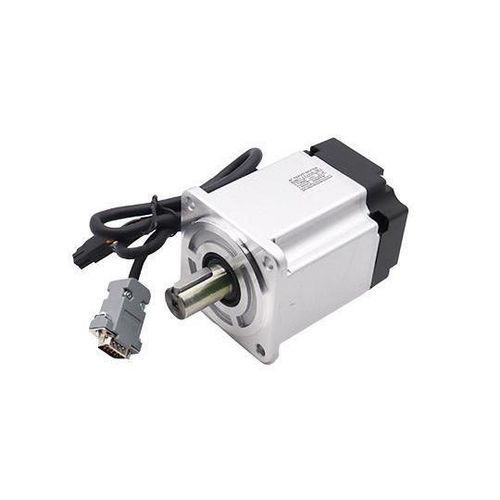

AC servomotor 80BST-C0 series

220 Vpermanent magnetIP65

Features: 17-bit 23-bit absolute value photoelectric encoder, with high-end and high responsiveness; Speed: Good high-speed performance, generally rated speed can reach 3000 rpm, maximum speed can reach 6000 rpm; Adaptability: Strong overload resistance, can withstand load three times the rated torque, especially suitable for occasions with instantaneous load fluctuations and requiring fast start; Stability: Smooth low-speed operation, no stepping operation phenomenon similar to stepper motors will occur during low-speed operation. Suitable for occasions with high-speed response requirements; Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds; Comfort: Heat and noise are significantly reduced.ModelVoltage (VAC)Current (A)Torque (Nm)BrakeWeight (kg)Body Length (mm)808ST-C02430-2B12204.52.39Without Brake102808ST-C02430-2B1-Z2204.52.39With Brake128808ST-C03230-2B12205.93.2Without Brake113808ST-C03230-2B1-Z2205.93.2With Brake140Motor SpecificationsModel80BST-C02430-2B180BST-C02430-2B1-Z80BST-C03230-2B180BST-C03230-2B1-ZRated Voltage (V)220220220220Rated Power (W)75075010001000Rated Current (A)4.54.55.95.9Rated Torque (N·m)2.392.393.23.2Rated Speed (rpm)3000±10%3000±10%3000±10%3000±10%Max Speed (rpm)5000±10%5000±10%5000±10%5000±10%Back EMF Constant (V/Krpm)34.334.33636Line Resistance (Ω)1.451.450.920.92Line Inductance (mH)4.954.953.43.4Rotor Inertia (10⁻¹kg·m²)1.481.481.931.93Torque Constant (Nm/A)0.530.530.540.54Electrical Time Constant (ms)3.413.413.73.7BrakeWithout BrakeWith BrakeWithout BrakeWith BrakeBody Length (L mm)102128113140Rotor Pole Pairs5PInsulation ClassClass FProtection RatingIP65––IP5Outline drawing:Encoder: 17-bit/23-bit absolute value photoelectric encoderRated speed: 3000 rpm (max 6000 rpm)Overload resistance: up to 3x rated torqueLow-speed stability: no stepping phenomenonDynamic response: acceleration/deceleration within tens of millisecondsReduced heat and noiseProtection: IP65 (varies by model)Insulation: Class FRotor pole pairs: 5
