AC servo motor 90 series
220 Vfeaturestandard

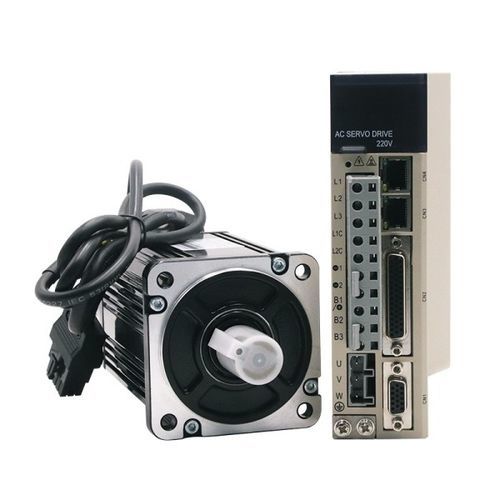

AC servo motor - 90 series - Shanghai Siheng Motor Co., Ltd - 220 V / feature / standard
AC servo motor - 90 series - Shanghai Siheng Motor Co., Ltd - 220 V / feature / standard
AC servo motor - 90 series - Shanghai Siheng Motor Co., Ltd - 220 V / feature / standard - image - 2
AC servo motor - 90 series - Shanghai Siheng Motor Co., Ltd - 220 V / feature / standard - image - 3
AC servo motor - 90 series - Shanghai Siheng Motor Co., Ltd - 220 V / feature / standard - image - 4
AC servo motor - 90 series - Shanghai Siheng Motor Co., Ltd - 220 V / feature / standard - image - 5
Add to favorites
Compare this product

Characteristics

Type
AC
Voltage
220 V
Configuration
feature
Other characteristics
standard
Power

1 kW
(1.36 hp)

Intensity

3 A, 4 A

Torque

Min.: 2.4 Nm
(1.770149 ft.lb)

Max.: 12 Nm
(8.850746 ft.lb)

Rotational speed

2,000 rpm, 2,500 rpm, 3,000 rpm
(12,566.3706 rad.min-1, 15,707.9633 rad.min-1, 18,849.5559 rad.min-1)

Description

Technical Specifications Dimension Diagram Wiring Driver Size Standard wiring diagram Position control mode 2.2.2 Speed/Torque Mode Wiring Diagram Category: AC Servo Motor and driverTags: Brushless motor, Closed-cloop stepper motor, DC servo Motor, Motor Driver, PM Stepper motor, Stepper motor Key Features / Technical Specifications: Product type: AC Servo Motor and driver Series: 90 Series Includes: Motor and driver Brushless motor Closed-loop stepper motor compatible DC servo motor compatible Position control mode supported Speed/Torque mode supported Standard wiring diagram available Detailed technical and dimensional drawings provided (see images)
