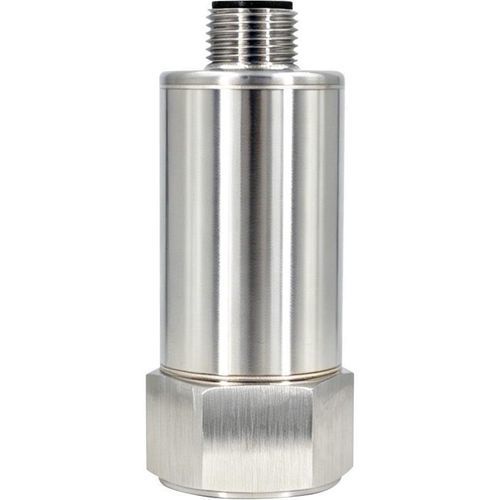

Magnetic vibration sensor HFA360

for machine monitoringfor automotive applicationsfor preventive maintenance

Product Description
This product is a high-precision, wide-response frequency Ethernet high-frequency vibration sensor for real-time measurement of triaxial vibration, capable of outputting triaxial vibration acceleration values in real time. It is widely applicable to real-time status analysis of rotating machinery such as motors, pumps, fans, air compressors, gas engines, generators, reducers, and gearboxes in industrial fields, providing accurate information on equipment operating status and health.

Key features

• Ultra-high response frequency bandwidth: measurement range up to 10 kHz, covering the fault frequency range of most rotating machinery in industrial settings.
• Ultra-high sensitivity and linearity: 20-bit ADC sampling method, achieving a sensitivity of 0.095 mg/LSB to accurately capture slight vibrations.
• High integration: simultaneously provides triaxial (X, Y, Z) vibration transient data, replacing the traditional "data acquisition card + sensor" mode.
• Ethernet communication interface: data can be directly uploaded to a server or platform via a 10/100M adaptive Ethernet interface for real-time transient waveform upload.
• Powered by DC 12V to ensure stable data upload.

Scope of application

• Vibration monitoring of industrial equipment
• Wind power
• Traffic system monitoring, subgrade analysis and high-speed railway fault detection
• Large machinery and engines
• Low frequency vibration and automatic monitoring
• Medical equipment
• Bridge monitoring
• Car (vehicle) monitoring
• Roller applications

Parameters
HFA360 — Parameters
Measurement Range: ±50g
Sensitivity: 0.095 mg/LSB
Measuring Axis: X / Y / Z Axis
Response Frequency: DC ~ 10 kHz
Sampling Frequency: 80 kHz
Transient Data: Transient data of X, Y, Z axes
Communication Interface: Ethernet
Default Server Address/Port: 192.168.1.169/22009
Default Device Address: 192.168.1.164
Device Address: The factory default address is "1"
Operating Ambient Temperature: -40℃ ~ +85℃
Installation Method: Magnetic or double-ended screw mounting (bottom hole M5*6)
Protection Rating: IP67
Dimensions: L24 × W27.3 × H60.6 mm
Product Weight: ≤105 g

Dimensions
Shell size: L24 × W27.3 × H60.6 mm

Technical specifications

• Model: HFA360
• Measurement range: ±50g
• Sensitivity: 0.095 mg/LSB
• Axes: X / Y / Z
• Response frequency: DC ~ 10 kHz
• Sampling frequency: 80 kHz
• Transient data output: X, Y, Z axes
• Interface: Ethernet (10/100M adaptive)
• Power supply: DC 12V
• Default server address/port: 192.168.1.169/22009
• Default device address: 192.168.1.164; factory default device ID: 1
• Operating temperature: -40℃ to +85℃
• Installation: magnetic or double-ended screw (bottom hole M5*6)
• Protection rating: IP67
• Dimensions: L24 × W27.3 × H60.6 mm
• Weight: ≤105 g
