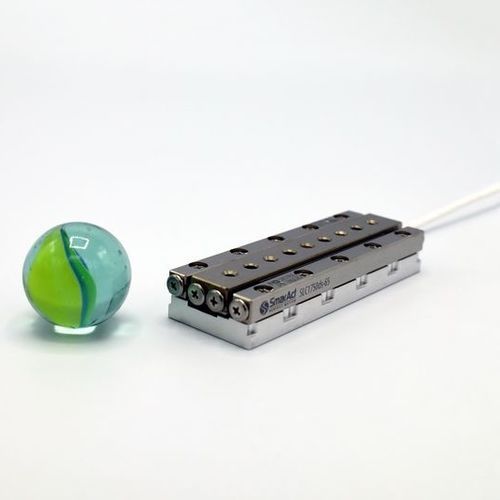

Linear stage SLC-1750

piezo1-axisclosed-loop

The SLC-1750 offers a travel range of 31 mm and a normal force of 30 N with dimensions of 50 x 17 x 8.5 mm. Please note that the downloadable documents for this linear piezo stage show the dimensions and specifications of an SLC-1750 for atmospheric or HV environments, equipped with an S-position sensor. For technical drawings and detailed specifications of other variants, such as UHV compatible stages, stages with higher blocking force or other sensor options, please contact us at any time. Mechanical Scan Range [µm] - > 1.3 Blocking Force [N] - ≥ 3.5 Max. Normal Force [N] - 30 Max. Lift Force [N] - > 1.5 Dimensions [mm] - 50 x 17 x 8.5 Weight [g] - 32 Open-loop Open-Loop Resolution MCS2 [nm] - < 1 Open-Loop Resolution (H)CU [nm] - < 50 Options Material Options - Aluminum base as standard; Steel base (-ST); Titanium base (-TI); Black anodized (-BK) Mechanical Options - U-shaped base for higher mechanical strength (-W) increases width to 23 mm; increased lifetime (-Z) Performance Options - Higher blocking force (-D): +1.5 N Cryogenic Option - Yes (only open-loop)
