Long-travel stage MLL-400

XYelectromagnetically-drivendirect-drive

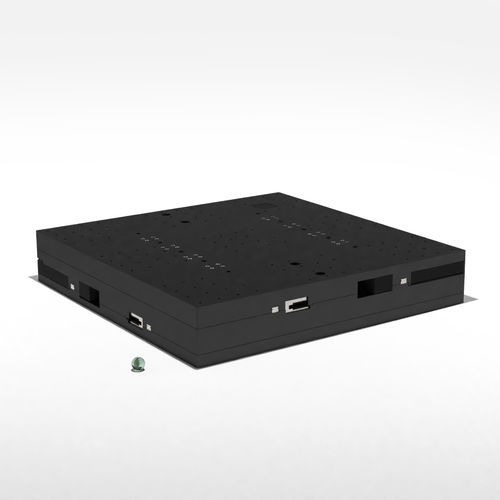

The SMARSHIFT MLL-400 is an electromagnetic direct drive XY stage with two travel options. The first option offers a large travel range of up to 300 mm. The second offers a reduced travel range of 200 mm for increased precision. Both versions can be mounted on a standard optical breadboard with 25 mm × 25 mm grid. The MLL-400 can be used as a base for an electromagnetic TRIPOD. Applications The MLL-400 has been specifically designed for demanding tasks in industrial manufacturing, including micro assembly, pick-and-place processes, and workpiece alignment. Other application areas include high-precision additive manufacturing, wafer positioning, and laser processing. Specifications Continuous Force [N] - 6 Peak Force [N] - 18 Max. Normal Force [N] - 200 Moving Mass [g] - 12000 (lower axis); 6000 (upper axis) Dimensions [mm] - 400 × 400 × 70 Weight [g] - 21000 Material Base Material - Aluminum, black anodized Closed-Loop Sensor Types - SC Max. Acceleration (no load) [m/s²] - 1 (lower axis); 2.5 (upper axis) In-Position Stability [nm] - ±5 Sensor Resolution MCS2 [nm] - 1 Uni-Directional Repeatability MCS2 [nm] - 150 | 100
