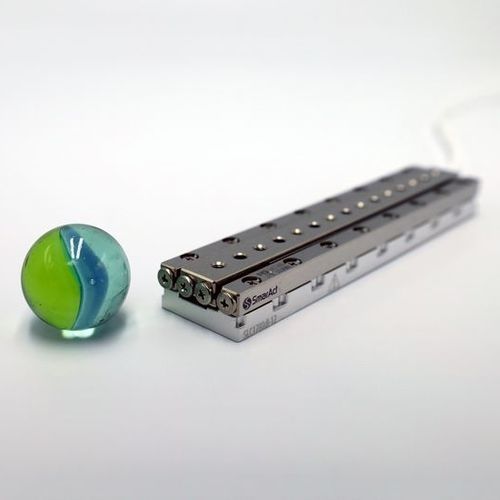

Linear stage SLC-1780

piezo1-axislong-travel

At 51 mm, the SLC-1780 offers the longest travel range within the SLC-17 series. With dimensions of 80 x 17 x 8.5 mm, it remains comparatively compact and provides a normal force of 30. Please note that the downloadable documents for this linear piezo stage show the dimensions and specifications of an SLC-1780 for atmospheric or HV environments, equipped with an S-position sensor. For technical drawings and detailed specifications of other variants, such as UHV compatible stages, stages with higher blocking force or other sensor options, please contact our sales team. Mechanical Blocking Force [N]≥ 3.5 Max. Normal Force [N]30 Max. Lift Force [N]> 1.5 Dimensions [mm]80 x 17 x 8.5 Weight [g]51 Open-loop Resolution [nm]< 1 Options Material Options Aluminum base as standard; Steel base (-ST); Titanium base (-TI); Black anodized (-BK) Mechanical Options U-shaped base for higher mechanical strength (-W) increases width to 23 mm; increased lifetime (-Z) Performance Options Higher blocking force (-D): +1.5 N Cryogenic Option Yes
