Laboratory test system

for electrical machines and installationsmodularmultichannel

Industry
Electrical installation

Overview

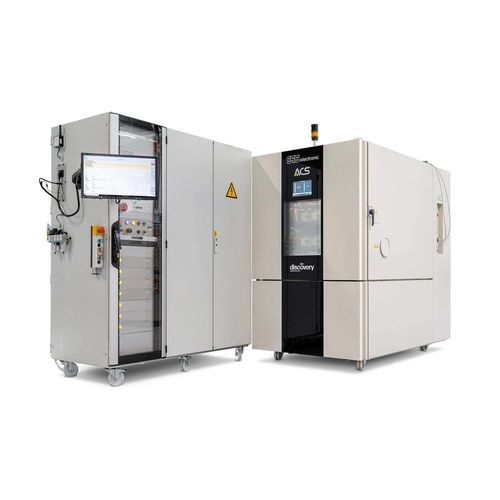

The test system performs electrical tests inside a climate chamber to expose samples to configurable temperature and humidity profiles. The setup includes adaptable fixtures to accommodate various specimen geometries and is designed to measure high insulation resistances even under elevated humidity and condensation on the specimen.

Main functions

• Insulation testing
• High-voltage testing
• Testing inside a climate chamber with configurable temperature and humidity profiles
• Parallel operation of up to 8 insulation testers to enable freely configurable testing of up to 816 test points
• Import of test plans from Excel spreadsheets and SQL databases
• Multiple test adapters available for different specimens
• Specialized design enabling measurement of high insulation resistances despite high humidity and condensation

Typical applications
Endurance and qualification tests for insulating materials, climatic condition testing, automated test campaigns in production or laboratory environments.

Technical specifications

• Brand: SPS electronic
• Product name: Test system with climate chamber
• Model / product number: R22046
• Industry: Electrical installation
• Test types: Insulation testing, High-voltage testing
• Test environment: Climate chamber with configurable temperature and humidity profiles
• Parallel instrumentation: Up to 8 insulation testers in parallel
• Maximum configurable test points: 816
• Test plan import: Supports Excel spreadsheets and SQL databases
• Adapters: Multiple test adapters available to suit different specimens
• Special design features: Enables measurement of high insulation resistances even under high humidity and condensation
