High-voltage testing system

insulation resistancesensorautomatic

Product name

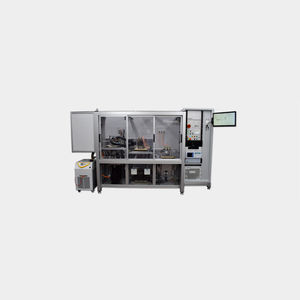

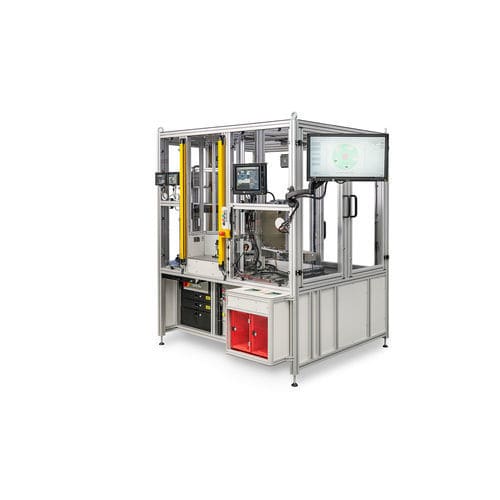

Testing system for sensors (R22019) designed for electric mobility production environments.

Industry
Electric Mobility

Main functions and tests

• Continuity test
• High-voltage test / Insulation resistance
• Label printing with automatic application and legibility verification
• Rotary transfer handling system with 5 positions
• Good and reject part chutes for output sorting

Visual inspections

• Detection of housing colour and integrated seal
• Detection of secondary lock presence and end position
• Detection of touch protection cap presence
• Verification of presence of all 4 screw-on sockets
• Plug colour recognition

Labeling & part handling

• Type plate printing including barcode
• Automatic application of the type plate and check of barcode/readability
• Integration in rotary production line with 5 positions
• Part separation via good and reject chutes

Applications
Designed for in-line production inspection of sensors for electric mobility; suitable for automated inspection stations and end-of-line testing.

Technical specifications

• Manufacturer: SPS electronic
• Model / reference: R22019
• Product: Testing system for sensors
• Supported tests: continuity; high-voltage test (insulation resistance)
• Visual inspection capabilities: housing colour & seal detection; secondary lock presence and end-position check; touch protection cap presence; 4 screw-on sockets verification; plug colour recognition
• Label printing: type plate printing with barcode, automatic application and legibility verification
• Handling: rotary transfer system with 5 positions
• Output handling: good and reject part chutes
