Electric test system

compactautomatic

Product overview
Fully automatic coffee machines are increasingly produced for both professional and private markets, increasing unit volumes and requiring automated, standards-compliant end-of-line testing adapted to multiple national power systems.

Industry
Household appliances

Task
High-volume production of compact fully automatic coffee machines requires a flexible, software-driven test system that supports different mains voltages, frequencies and international plug types, ensures workplace safety according to EN 50191, records all test data on a PC and provides automated daily dummy tests.

Solution

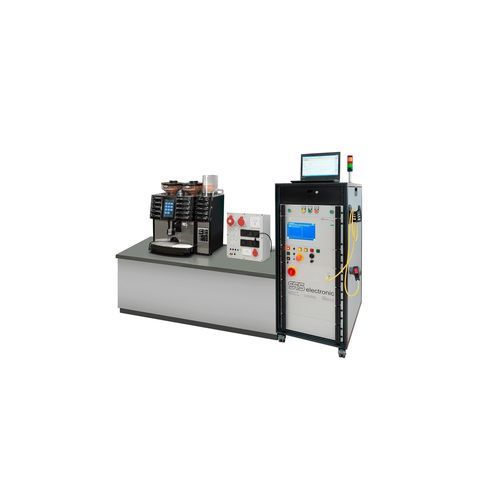

The KT 1885B compact tester with a dedicated coffee-machine extension integrated into a test rack, combined with a separate standard PC or laptop connected via Ethernet (LAN). The tester is freely programmable to perform both safety and function tests. A separate connection desk groups international plug connectors and allows for future extensions. Two-hand operation and a ground bond test pin are integrated; a dummy stored in the rack enables daily automatic dummy tests.

Benefits

• Modular, future-ready setup using a separate standard PC with networked test software
• Programmable electronic supply and configurable test sequences
• Turnkey workstation layout including separate connection desk
• Intuitive operation for trained operators
• Single connection of the DUT with fully automatic test sequence
• Automatic storage of test data in the chosen network location or database
• Long service life and service-friendly design
• All parameters and limits adjustable via software
• Workplace safety compliant with EN 50191
• Short cycle times using safety-current-limited test techniques
• Automatic daily dummy test

Safety test

• Ground bond test: 1 – 30 A AC / 0 – 10 Ω
• Insulation test: 100 – 6,000 V DC / 0.25 MΩ – 10 GΩ
• Hipot AC: 100 – 5,500 V AC / 0 – 3 mA
• Hipot DC: 100 – 6,000 V DC / 0 – 10 mA

Function test

• Continuity test: 24 V DC / 0 – 600 mA
• Resistance measurement: 0 – 1,000 Ω
• Current measurement: 0 – 16 A (AC and DC)
• Voltage measurement: 0 – 300 V (AC and DC)
• Active power measurement: 0 – 4,000 W
• Reactive power measurement: 0 – 4,000 VAR
• Apparent power measurement: 0 – 4,000 VA
• Power factor (cos φ): -1 to +1
• Equivalent leakage current measurement: 10 – 270 V / 0 – 10 mA

Technical specifications

• Standard compact tester: KT 1885B (freely programmable)
• PC/laptop with standard test software, Ethernet (LAN) connection
• Separate connection desk for multiple international plug connectors and future extensions
• Two-hand operation and ground bond test pin integrated in the test rack
• Dummy holder for daily dummy tests
• Compliance with EN 50191 for workplace safety
• Automatic data storage in network mode (chosen location / database)
• Short cycle times using safety-current-limited test technique
