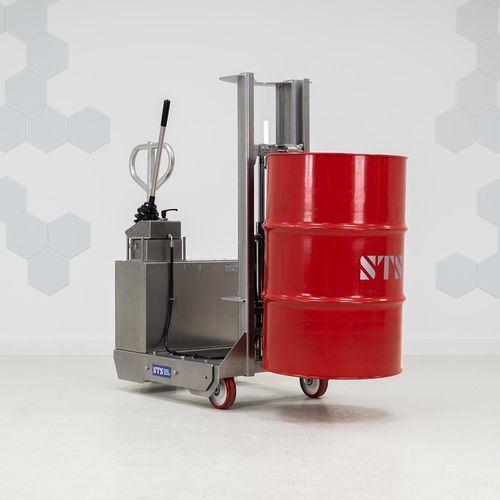

Manual drum lifter DTP08-R500-SS

hydrauliccounterbalancedstainless steel

Overview
Explore the stainless steel counterbalance drum lifter range designed for hygienic, corrosive, and washdown environments. Manufactured from high-quality 304-grade stainless steel, these drum lifters are ideal for food processing, pharmaceutical, chemical, and clean production facilities where cleanliness, durability, and corrosion resistance are essential.

The counterbalance design removes the need for front outriggers, allowing operators to approach pallets, bunds, containment units, and machinery directly for safe and precise drum placement.

Designed and manufactured in the UK, the stainless steel drum lifter combines robust construction with versatile drum handling capabilities for drums ranging from 50 to 220 litres.

Unique handling capabilities
The stainless steel drum lifter improves safety and operational efficiency in hygienic and corrosive environments through a compact and highly manoeuvrable counterbalance design. Key capabilities include:

• No front legs for unrestricted pallet and bund access
• Hygienic 304-grade stainless-steel construction
• Manual-hydraulic lifting system with controlled lowering
• Rear-wheel steering for precise manoeuvring
• Adjustable universal drum catch for multiple drum styles
• Smooth vibratory-polished finish for easy cleaning
• Low-maintenance operation with long service life

The unit is suitable for handling steel, plastic, and fibreboard drums in clean manufacturing environments where painted mild-steel equipment may not be appropriate.

Pallets and bunds
The counterbalance chassis enables direct access to pallets, spill pallets, containment bunds, and production equipment without obstruction from front support legs. Operators can safely lift and position drums in confined areas while maintaining excellent visibility and control.

This makes the unit particularly effective for pharmaceutical processing areas, food production lines, and chemical manufacturing facilities where precise drum positioning is required.

Versatile drum gripper
the stainless steel drum lifter uses the STS universal drum catch system, designed to accommodate a wide variety of industrial drum types. The fully adjustable catch can securely grip:

• Steel open-top drums
• Steel tight-head drums
• L-ring plastic drums
• MAUSER plastic drums
• Fibreboard drums

The catch position can be adjusted quickly to suit different drum heights and drum lip configurations, allowing one machine to handle multiple drum formats across different production areas.

Height adjustment
A stainless-steel ladder rack allows operators to reposition the drum catch assembly vertically for different drum heights. The adjustable arrangement enables the lifter to handle drums ranging from approximately 380mm to 1000mm in height.

Taller rack configurations are available for applications requiring increased lift clearance, such as elevated bunds, raised platforms, conveyors, or process machinery.

Drum types handled
The stainless steel counterbalance drum lifter is designed to safely lift and transport drums between 50 and 220 litres, including:

• Steel open-top drums
• Steel tight-head drums
• L-ring plastic drums
• MAUSER plastic drums
• Fibreboard drums

Its universal compatibility makes it ideal for facilities handling multiple drum styles throughout different production processes.

Operational efficiency
The stainless steel drum lifter is designed to improve workplace efficiency while reducing manual handling effort in hygienic environments. The compact chassis and rear steering arrangement allow operators to manoeuvre drums safely through narrow production areas and confined process spaces.

The manual-hydraulic lifting system provides smooth, controlled lifting with low operator effort, making the unit suitable for low- to medium-volume drum handling applications. Electric-hydraulic lift upgrades are also available for higher-frequency handling operations.

Safety and ergonomics
Safety and operator comfort are central to the design of the stainless steel drum lifter. Key ergonomic and safety features include:

• Rear-wheel steering for precise drum positioning
• Controlled hydraulic lowering valve
• Low-force manual pump operation
• Counterbalance design for improved stability
• Smooth stainless-steel finish for hygienic cleaning
• ATEX-certified models for hazardous environments
• Overload-tested construction for safe operation

All units are overload tested to 150% of rated capacity during manufacture to ensure stability and compliance with relevant standards.

Stainless Steel Drum Lifter — Manual hydraulic operation

The stainless steel counterbalance drum lifter combines the simplicity of manual-hydraulic lifting with hygienic stainless-steel construction. The hand-operated hydraulic pump provides reliable lifting performance while the lowering valve allows smooth and controlled drum placement.

The pump assembly is enclosed within a stainless-steel shroud to protect it from water ingress and environmental contamination, making the unit highly suitable for washdown environments and clean manufacturing facilities.

Typical applications include:

• Food processing facilities
• Pharmaceutical production
• Chemical manufacturing
• Washdown environments
• Hygienic drum handling operations
• Loading and unloading pallets and bunds
• Typical throughput: Approximately 20–30 drums per hour
• Lift system: Manual hydraulic pump with lowering valve
• Drive: Manual push/pull operation
• Steering: Rear-wheel steering
• Construction: 304-grade stainless steel with vibratory-polished finish
• Maintenance: Low-maintenance mechanical design with protected hydraulic system

Upgrades and options

Available upgrades and customisation options include:

• ATEX-certified models for Zones 1, 2, 21, and 22
• Push-button electric-hydraulic lift system
• Integrated load-cell weighing system (±0.1kg accuracy)
• Taller lift configurations with 760mm or 1260mm lift stroke
• Increased Safe Working Load (SWL) versions up to 350kg
• Bespoke drum handling attachments for unusual drum types
• Custom drum grippers for screw-top or specialist plastic drums

These upgrades allow the equipment to be tailored to specific industrial processes and handling requirements.

Caractéristiques / Spécifications techniques

• Series designation: DTP08-R500-SS Stainless Steel Counterbalance Drum Lifter
• Drum sizes handled: 50–220 litres
• Drum compatibility: Steel, plastic, fibreboard, MAUSER drums
• Safe Working Load (SWL): 250kg / 350kg variants
• Lift stroke: 500mm standard
• Under-drum clearance: 420mm
• Drum height range: Approximately 380–1000mm
• Lifting system: 13cc hand-operated hydraulic pump with lowering valve
• Construction: 304-grade stainless steel chassis
• Hydraulic ram finish: Nickel/chrome-plated steel ram
• Surface finish: Smooth vibratory-polished stainless steel
• Front wheel material: Nylon-centred with polyurethane tyres
• Rear wheel: Single 160mm steerable wheel with precision bearings
• Turning configuration: Rear-wheel steering
• Applications: Food processing, pharmaceutical, chemical, hygienic manufacturing
• ATEX options: Zones 1, 2, 21, and 22 certified variants available
• Optional weighing system: Integrated load-cell scale with ±0.1kg accuracy
• Optional lift heights: 760mm and 1260mm lift stroke variants available
