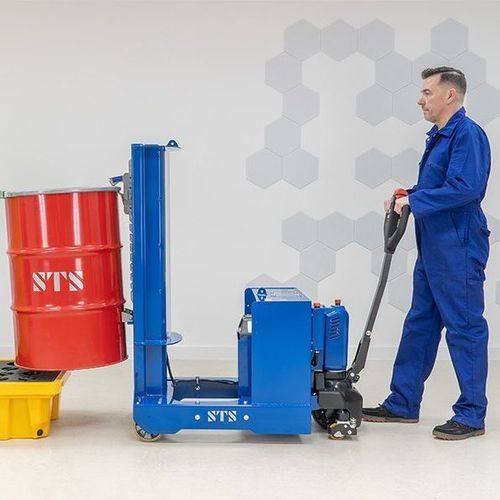

Motorized drum lifter DTP series

electricbattery-poweredfully-electric

Overview
Explore the DTP08 series of counterbalance drum lifters (DTP08 / DTP08EL / DTP08ELD). These units are designed to lift drums and barrels on and off pallets, spill pallets, bunds and into machines in tight, confined spaces. The counterbalance design removes front outriggers so operators can get closer to the target for precise placement.

Unique handling capabilities
Our counterbalance drum lifter range improves safety and efficiency. Key capabilities include:

• Close access to pallets, spill pallets, bunds and containment units due to no front legs
• Options from manual lift to fully powered electric lift and electric drive
• Compact footprint and rear-wheel steering for tight spaces
• Adaptable drum catch systems: universal (manual models) and fully automatic (fully powered model)

Pallets and bunds
Every model is built for pallet and bund operations: the counterbalance design enables precise placement of drums onto low pallets, raised bunds and containment units. Minimum lift clearance figures vary by model and configuration.

Versatile grippers
The DTP08 and DTP08EL use a universal drum catch; the DTP08ELD uses a fully automatic drum catch. These grippers accommodate steel, plastic and fibreboard drums and can be adjusted quickly to suit different drum heights.

Height adjustment
All models feature an adjustable rack so the drum catch can be positioned for different drum heights. Taller rack variants are available to provide extra clearance required for raised platforms or process machinery.

Drum types handled
Handle a wide range of drum constructions and sizes:

• Steel open-top drums
• Steel tight-head drums
• L-ring plastic drums
• MAUSER plastic drums
• Fibreboard drums

Operational efficiency
Models are matched to throughput needs: manual DTP08 for low-volume tasks, DTP08EL for mid-volume with electric lift, and DTP08ELD for high-volume, fully powered operation. Electric lift and automatic catch options substantially reduce cycle time and operator effort.

Safety and ergonomics
Counterbalance design, hydraulic controlled lowering, rear-wheel steering and ergonomic controls reduce manual handling risk. ATEX and stainless-steel versions are offered for hazardous or hygienic environments respectively.

DTP08 — The 'Original' model
Manual lift / manual drive. Manual hydraulic pump with hand-operated lowering valve, rear-wheel steering. Designed for low- to mid-volume handling in confined spaces. Available in ATEX and 304-grade stainless-steel variants.

• Typical throughput: 20–30 drums per hour
• Manual hydraulic lift, lift clearance examples shown for standard configurations
• Low maintenance, intuitive operation

DTP08EL — The 'Electric Lift' model
Electric lift / manual drive. Electric-hydraulic lift removes the physical lift effort while the unit is still moved manually for tactile positioning. Compact, intuitive controls and a long-life AGM battery pack.

• Typical throughput: up to 30–40 drums per hour
• Battery: 24V, 25Ah AGM (provides many cycles per charge)
• Turning radius and compact chassis for tight spaces

DTP08ELD — The 'Fully Powered' model
Electric lift and electric drive with fully automatic drum catch. Designed for high-volume operations and extended distances. Fast-charging 24V lithium-ion battery, quick-change battery packs and controlled-access operation (PIN code) are available for secure, continuous operation.

• Typical throughput: up to 50–60 drums per hour
• Battery: 24V, 20Ah lithium (removable/quick-change)
• Features: fully automatic drum catch, electric drive, PIN access control, quick-change battery (≈5 seconds)

Upgrades and options
Available factory options and upgrades include:

• 304-grade stainless-steel construction (hydraulic rams nickel/chrome plated, pump encased)
• Integrated load-cell weighing system (weigh while lifting; accuracy listed to ±0.1 kg)
• ATEX-rated construction for Zones 1, 2, 21 and 22 (anti-static / conductive components)
• Increased lift stroke options (longer rams for 760 mm or 1260 mm lift strokes)
• Increased Safe Working Load (SWL) variants and bespoke attachments for uncommon drum types

Caractéristiques / Spécifications techniques

• Series designation: DTP08 series (DTP08, DTP08EL, DTP08ELD)
• Drum sizes handled: 50–220 litres
• Drum compatibility: steel open-top, steel tight-head, L-ring plastic, MAUSER plastic, fibreboard
• Safe Working Load (SWL): typical model variants 250 kg / 350 kg (model-dependent)
• Lift stroke / guaranteed lift clearance (examples): standard lift stroke 500 mm with quoted lift clearances in product pages (examples: DTP08 & DTP08EL 500 mm (420 mm clearance); DTP08ELD 500 mm (370 mm clearance))
• Throughput (typical): DTP08 ≈ 20–30 drums/hr; DTP08EL ≈ 30–40 drums/hr; DTP08ELD ≈ 50–60 drums/hr
• Unit lengths (examples): 1250 mm / 1500 mm (model/variant dependent); DTP08ELD example listed at 1260 mm for some variants
• Turning circle / radius examples: DTP08 / DTP08EL ≈ 2240 mm / 2700 mm (depending on chassis); DTP08ELD example ≈ 2600 mm
• Unladen weights (examples): DTP08 ≈ 343 kg; DTP08EL ≈ 369 kg; DTP08ELD ≈ 503 kg (model-dependent)
• Chassis width (example): 700 mm wide chassis
• Minimum drum height supported (example): 400 mm
• Operator effort (example):
• Weighing system (optional): integrated load-cell weigh scale, accuracy to ±0.1 kg
• Batteries: DTP08EL uses 24V 25Ah AGM; DTP08ELD uses 24V 20Ah lithium (removable/quick change)
• ATEX: certified options for Zones 1, 2, 21 and 22
• Quick-change battery: approximate swap time 5 seconds (DTP08ELD)
