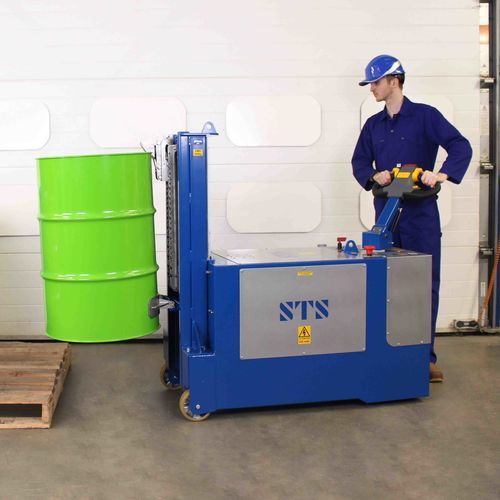

Motorized drum lifter DPC01-R500

electro-hydraulicelectricbattery-powered

Overview
This powered counterbalance drum handler enables safe, accurate lifting and transport of drums up to 350 kg, removing manual handling from repetitive or heavy-duty drum operations. The automatic beak grip engages common drum lips and a rear tiller provides easy manoeuvring and precise placement.

Key features

• Automatic beak grip Fully automatic clamp engages and lifts 100–220 L steel, plastic and fibreboard drums (including MAUSER drums). The gripper raises and clamps the drum lip in one motion; alternative grippers are available for other drum types and lips.
• Battery-powered drive system Two 180 Ah batteries supply a 24 V electric drive motor. Drive, lift and lower functions are integrated into the rear tiller assembly. An on-board charger allows recharging from mains power.
• Counterbalance design No front legs allow placement onto pallets, bunds, conveyors, machines and dollies without obstruction. Counterweights can be specified for heavier loads to ensure stability and compliance.
• Tiller controls Rear tiller includes variable speed throttles, anti-trap protection and an emergency stop. Control layout is similar to mobile stacker trucks for operator familiarity, and a horn provides audible warning.
• Drum suitability Compatible with steel, plastic and fibreboard drums, 100–220 litres (incl. MAUSER drums). Gripper height is adjustable to suit different drum lips.

Optional features

• 304-grade stainless-steel construction for cleanrooms and GMP environments.
• Tall-lift variant with increased lift stroke (up to 760 mm) for high containment bunds or elevated placements.
• Load-cell weighing system with digital read-out for in-process weighing and process control.

Technical specifications

• Safe working load (SWL): 350 kg
• Pallet straddle: N/A
• Pallet approach: Approaches any flat side of a pallet; no legs in front of the lifter
• Drum compatibility: Steel, plastic and fibreboard drums, 100–220 litres (incl. MAUSER drums)
• Drum gripping catch: Automatic drum gripper; height adjustable to suit different drum lips
• Lift stroke: 500 mm
• Under-drum clearance: 370 mm
• Lifting system: Electric-hydraulic lift via hydraulic pump and ram arrangement
• Guarding: Shatterproof clear polycarbonate
• Metal preparation: Grit blasted mild steel; aqua blasted stainless steel parts
• Surface finish: Primer and polyester powder coated mild steel; stainless steel finished smooth and clean
• Unit colour: RAL 5010 (blue)
• Front wheels: Fixed 160 mm castors, aluminium centred with polyurethane tyres
• Rear wheel: Electric power drive wheel, 24 V, 1000 W
• Tiller drive control: Rear tiller drive, includes lift control, emergency stop and anti-trap protection
• On-board charger: 230 V on-board smart battery charger
• Compliance: CE / UKCA
