Hybrid drum lifter DTP04-R500-1250-SS

battery-poweredmanualtransversal

Product overview

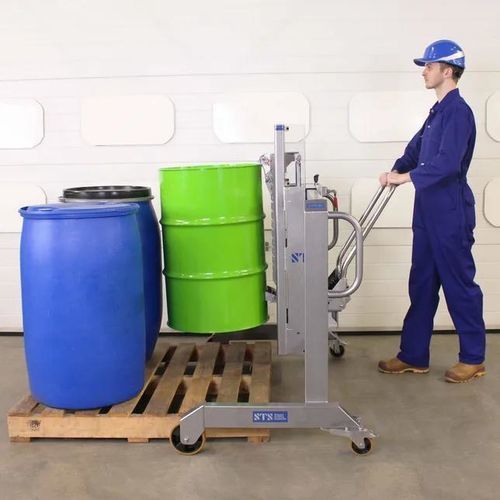

This side-shift stainless steel drum unloader removes drums from a single side of a pallet. The over-pallet design enables smooth travel of the lifter body across standard pallets, making the unit suitable for pharmaceutical and food production environments where hygiene and corrosion resistance are required.

Key features

• Universal drum catch: adjustable to handle steel, plastic and fibreboard drums
• Side-shift lifter: low-resistance sliding mechanism with precision bearings and lockable positions
• Vertical height adjustment: multiple mounting positions for different drum heights
• Manual hydraulic pump: UK-manufactured assembly with sealed shroud and precision lowering valve (17 cc displacement)
• ATEX option: certified models for Zones 1, 2, 21 and 22 with continuity to ground

Feature details
Handles a wide range of drums
Manufactured in high-grade stainless steel, the universal drum catch is adjustable to accommodate steel open-top and tight-head drums, L-Ring and MAUSER plastic drums, and fibreboard drums. Compatible drum sizes: 50–220 L.

Side-shift lifter
Fourteen precision bearings ensure low-resistance side-to-side movement for accurate positioning on pallets or within confined workspaces. The lifter section can be locked in position using a hand-operated toggle clamp. Suitable drum heights: 380–1000 mm.

Vertical height adjustment
The front frame offers multiple mounting positions. Reposition the drum catch by removing the securing pin, adjusting to the required height and refitting the pin for secure operation.

Manual hydraulic pump
The unit is fitted with a UK-manufactured hydraulic pump supplying oil to a nickel- and chrome-plated steel lift ram. The pump is enclosed in a sealed shroud to protect against contamination. Operators raise the drum via the rear handle and lower it using a precision valve. Hand pump displacement: 17 cc.

ATEX certified models
Available for hazardous atmospheres; ATEX versions are supplied with a Declaration of Conformity and Load Test Certificate and maintain electrical continuity through the lifter for grounding.

Upgrades and options

• Electric-hydraulic (push-button) lift upgrade — battery powered for higher throughput
• Integrated weighing system — rechargeable, accuracy +/- 0.1 kg with zero and tare functions
• ATEX specification for Zones 1, 2, 21 and 22
• Alternative pallet straddle widths: 850 mm, 1050 mm, 1250 mm
• Increased lift height (taller lifter body/ram) for raised platforms or bunds
• Custom attachments for non-standard drum types

Documents
Technical specification, instruction manual and drum suitability documentation are available on request.

Technical specifications

• Model name: Stainless Steel Side-Shift Drum Unloader
• Safe working load (SWL): 350 kg
• Lift stroke (lift clearance): 500 mm (alternative: 420 mm)
• Drum compatibility: 50–220 litre drums; steel open-top; steel tight-head; L-Ring plastic; MAUSER plastic; fibreboard drums
• Pallet straddle options: 1250 mm (standard for 1200 mm pallets); 1050 mm; 850 mm
• Clearance under lifter body: 170 mm
• Turning circle: 1765 mm
• Unladen weight: 128 kg
• Hydraulic hand pump displacement: 17 cc
• Weighing system accuracy (optional): +/- 0.1 kg
• ATEX: available for Zones 1, 2, 21 and 22
