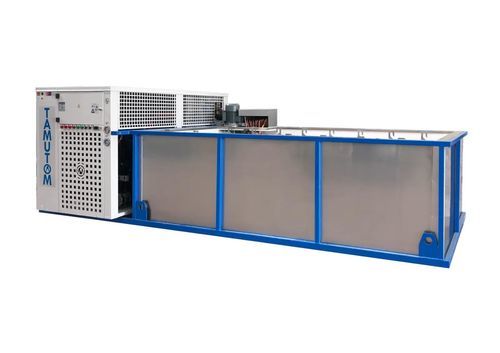

Block ice production machine BIM3T

Product overview
Industrial block ice machine TAMUTOM BIM3T with a production capacity of 3,000 kg/day (3 t/day). Produces high-density 12 kg blocks suited to fisheries, seafood processing, meat and poultry plants, fruit and vegetable packing, cold stores and large-scale ice suppliers. Designed for continuous 24/7 operation with commercial refrigeration components, intuitive controls and options for customized block dimensions and electrical configurations.

Modular Block Ice Machine Technical Data
Total Ice Making Capacity: 3000 kg/day
Ice Block Amount per Shift: 84 Blocks
Each Block Weight: 12 kg (10 cm x 20 cm x 70 cm)
Production Time per Shift: 7-8 Hours
Daily Block Production: 252 Pcs
Power Supply: 380-415 V, 3 Phase, 50-60 Hz
Ice Temperature: -12 °C
Refrigerant: Freon R404A
Unit Weight: 1250 kg
Unit Dimensions: 400 cm x 150 cm x 150 cm
Power Consumption: 11.00 kWh
Compressor Capacity: 15 HP
Condenser and Capacity: Air Condenser / 22740 m³/h

Key features and commercial benefits

• High-volume production: 3,000 kg/day supporting intensive industrial and commercial operations.
• Slow melting—extended cold chain: Dense 12 kg blocks melt slower than flake or tube ice, improving product preservation and long-distance transport performance.
• On-site production advantage: Enables immediate supply, flexible response to demand, multi-client service and optimized logistics.
• Designed for continuous operation: Engineered components and cooling cycles deliver stable output and predictable maintenance scheduling.

Technical specifications

• Total Ice Making Capacity: 3000 kg/day
• Ice Block Amount per Shift: 84 Blocks
• Each Block Weight: 12 kg (10 cm x 20 cm x 70 cm)
• Production Time per Shift: 7-8 Hours
• Daily Block Production: 252 Pcs
• Power Supply: 380-415 V, 3 Phase, 50-60 Hz
• Ice Temperature: -12 °C
• Refrigerant: Freon R404A
• Unit Weight: 1250 kg
• Unit Dimensions: 400 cm x 150 cm x 150 cm
• Power Consumption: 11.00 kWh
• Compressor Capacity: 15 HP
• Condenser and Capacity: Air Condenser / 22740 m³/h
