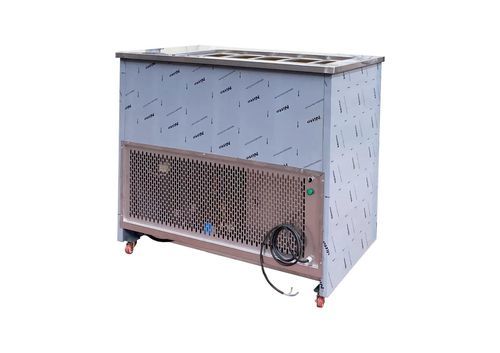

Block ice production machine BIM25

for the food industry

Product Overview
The Tamutom BIM25 block ice machine is a modular industrial unit for commercial production of dense, slow-melting block ice at −12 °C. It is available in brine-type and fully automatic direct-cooling versions, suitable for seafood preservation, cold-chain logistics, construction cooling and other industrial uses.

Key Benefits

• High capacity: up to 625 kg of block ice per 24 hours to match medium-scale commercial demand.
• Centralized production: supports distribution to multiple retail or processing points.
• Designed for continuous operation in warm climates where year-round ice is required.
• Efficient refrigeration components for controlled energy consumption and predictable operating costs.
• Produces solid, dense blocks with extended cooling duration to reduce melt loss during transport.
• Simple controls and robust mechanical design for straightforward operation and maintenance.

Modular Block Ice Machine Technical Data — Brine Type
Total ice making capacity: 625 kg/day
Ice block amount per shift: 25 blocks
Each block weight and dimensions: 5 kg (9 cm × 16 cm × 47 cm)
Production time per shift: 4–5 hours
Daily block production: 100–125 pcs
Power supply: 380–415 V, 3 Phase, 50–60 Hz
Ice temperature: −12 °C
Refrigerant: Freon R404A
Unit weight: 285 kg
Unit dimensions (W×D×H): 90 cm × 140 cm × 150 cm
Power consumption: 1.80 kWh
Compressor capacity: 3 HP
Condenser: Air condenser, capacity 7550 m³/h

Commercial Use Cases

• Seafood distributors and markets: preservation and transport of fish and seafood.
• Food wholesalers and supermarkets: support for cold-chain storage and distribution.
• Beverage suppliers and ice retailers: centralized supply for multiple outlets.
• Construction: concrete cooling and on-site cooling requirements.

Technical Specifications

• Model: BIM25
• Brand: Tamutom
• Total ice making capacity: 625 kg/day
• Ice block amount per shift: 25 blocks
• Each block weight and dimensions: 5 kg (9 cm × 16 cm × 47 cm)
• Production time per shift: 4–5 hours
• Daily block production: 100–125 pieces
• Ice temperature: −12 °C
• Refrigerant: Freon R404A
• Power supply: 380–415 V, 3 Phase, 50–60 Hz
• Unit weight: 285 kg
• Unit dimensions (W×D×H): 90 cm × 140 cm × 150 cm
• Power consumption: 1.80 kWh
• Compressor capacity: 3 HP
• Condenser: Air condenser, capacity 7550 m³/h
