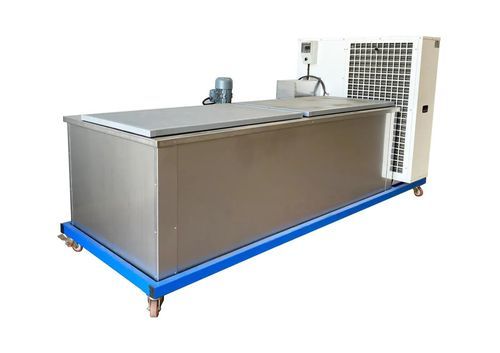

Block ice production machine BIM50

Product Overview
The Tamutom BIM50 Block Ice Machine is a modular brine-type industrial unit designed to produce high-density block ice at an operating ice temperature of -12 °C. It delivers up to 1000 kg/day and produces 5 kg blocks suitable for storage, transport and processing applications. The machine is available with configurable electrical supply options to match site requirements.

Key Benefits
The unit enables on-site production of dense block ice with a slow melt rate, reducing dependence on external ice deliveries and supporting consistent cooling capacity for processing and logistics. Its modular design facilitates installation in constrained spaces and simplifies maintenance access.

Commercial Uses

• Fisheries and seafood processing
• Meat and poultry processing facilities
• Fruit and vegetable storage and handling
• Beverage distribution and cooling
• Cold chain logistics and transport preservation

Modular Block Ice Machine Technical Data (table)
Total Ice Making Capacity: 1000 kg/day
Ice Block Amount per Shift: 50 Blocks
Each Block Weight: 5 kg (9 cm × 16 cm × 47 cm)
Production Time per Shift: 5–6 Hours
Daily Block Production: 200 Pcs
Power Supply: 380–415 V, 3 Phase, 50–60 Hz
Ice Temperature: -12 °C
Refrigerant: Freon R404A
Unit Weight: 675 kg
Unit Dimensions: 300 cm × 115 cm × 120 cm
Power Consumption: 4.58 kWh
Compressor Capacity: 7 HP
Condenser and Capacity: Air condenser / 14,500 m³/h

Additional Notes
Blocks produced can be used intact or mechanically crushed to meet different cooling profiles. The BIM50 can be supplied with alternative block sizes and with tailored electrical configurations for specific industrial and commercial installations.

Specifications / Technical details

• Total Ice Making Capacity: 1000 kg/day
• Ice Block Amount per Shift: 50 Blocks
• Each Block Weight: 5 kg (9 cm × 16 cm × 47 cm)
• Production Time per Shift: 5–6 Hours
• Daily Block Production: 200 Pcs
• Power Supply: 380–415 V, 3 Phase, 50–60 Hz
• Ice Temperature: -12 °C
• Refrigerant: Freon R404A
• Unit Weight: 675 kg
• Unit Dimensions: 300 cm × 115 cm × 120 cm
• Power Consumption: 4.58 kWh
• Compressor Capacity: 7 HP
• Condenser: Air condenser / 14,500 m³/h
