Ice maker BIM5TCO

Product overview

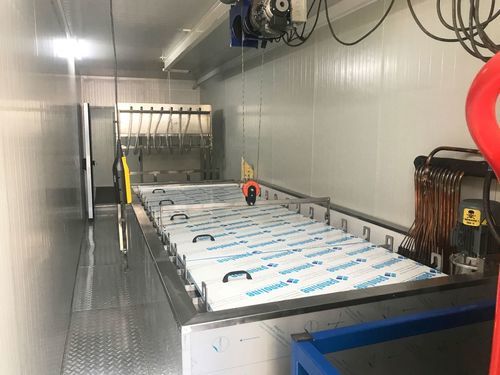

5,000 kg/day containerized block ice machine Tamutom BIM5TCO is a high-capacity industrial cooling solution designed for large fishing ports, seafood exporters, cold-chain logistics providers, meat and poultry processors, beverage factories, agricultural collection hubs and mobile industrial cooling applications. All components are integrated inside a standard 20FT ISO container for rapid deployment without civil works or fixed infrastructure.

Technical information — Brine type

• Total ice making capacity: 5,000 kg/day
• Ice blocks per shift: 112 blocks
• Block weight: 15 kg (10 cm × 20 cm × 70 cm)
• Production time per shift: 7–8 hours
• Daily block production: 336 pcs
• Power supply: 380–415 V, 3 phase, 50–60 Hz
• Ice temperature: −12 °C
• Refrigerant: R404A
• Unit weight: 4,250 kg
• Unit dimensions: 20FT standard container
• Power consumption: 20.40 kW/h
• Compressor capacity: 30 HP
• Condenser: air condenser, 33,898 m³/h
• Type: 20FT standard insulated container with sandwich panels

Key features and commercial benefits

• High daily output of 5,000 kg of block ice for operations in hot climates or locations lacking refrigerated warehouses.
• Block ice provides long-lasting cooling suitable for fishing vessels, open trucks, containers and remote markets, preserving fish, shrimp, tuna, meat, poultry, fruits and vegetables during transport and storage.
• Integrated container design enables fast worldwide deployment without civil construction or local infrastructure investment.
• Applicable to concrete cooling in large infrastructure projects to reduce thermal cracking and improve durability.

Specifications / technical data

• Total ice making capacity: 5,000 kg/day
• Ice blocks per shift: 112 blocks
• Block weight: 15 kg (10 cm × 20 cm × 70 cm)
• Production time per shift: 7–8 hours
• Daily block production: 336 pcs
• Power supply: 380–415 V, 3 phase, 50–60 Hz
• Ice temperature: −12 °C
• Refrigerant: R404A
• Unit weight: 4,250 kg
• Unit dimensions: 20FT standard container
• Power consumption: 20.40 kW/h
• Compressor capacity: 30 HP
• Condenser: air condenser, 33,898 m³/h
• Type: 20FT standard insulated container with sandwich panels
