Block ice production machine BIM4TCO

for the food industry

Product overview

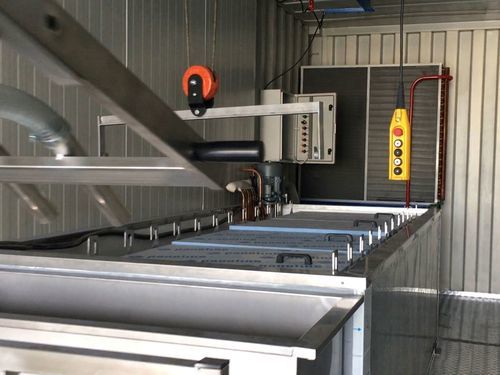

The 4,000 kg/day containerized block ice machine is an integrated industrial ice solution packaged inside a standard 20 ft insulated ISO container. The unit includes refrigeration plant, freezing tanks, electrical panels and control systems pre-installed for plug-and-play operation on delivery, eliminating the need for on-site construction.

Application and advantages
This plant is suited to medium-scale fishing ports, seafood cooperatives, pre-export cooling centres, meat and poultry processing, agricultural collection hubs and mobile food logistics. It performs reliably in hot climates or locations with limited cold-chain infrastructure and can be powered by mains, generator or renewable sources where required.

Brine type — Technical data

• Total ice making capacity: 4000 Kg / Day
• Ice block amount per shift: 112 blocks
• Each block weight: 12 Kg (10 cm × 20 cm × 70 cm)
• Production time per shift: 7–8 hours
• Daily block production: 336 pcs
• Power supply: 380–415 V, 3 phase, 50–60 Hz
• Ice temperature: -12 °C
• Refrigerant: Freon R404A
• Unit weight: 4250 Kg
• Unit dimensions: 20 ft standard container
• Power consumption: 18.50 kW/h
• Compressor capacity: 20 HP
• Condenser and capacity: Air-cooled condenser / 33,898 m³/h
• Type: 20 ft standard insulated container with sandwich panels

Key features and commercial benefits

• Fully containerized (standard ISO 20 ft) for mobility and immediate operation on delivery with no civil works.
• High daily output of 4,000 kg block ice for medium-scale industrial requirements.
• Block ice provides long-lasting cooling for fishing vessels, open trucks and long-distance transport without refrigerated containers.
• Suitable for remote sites and can operate from generators or renewable power — applicable to ports, cooperatives, disaster relief, military logistics and construction camps.
