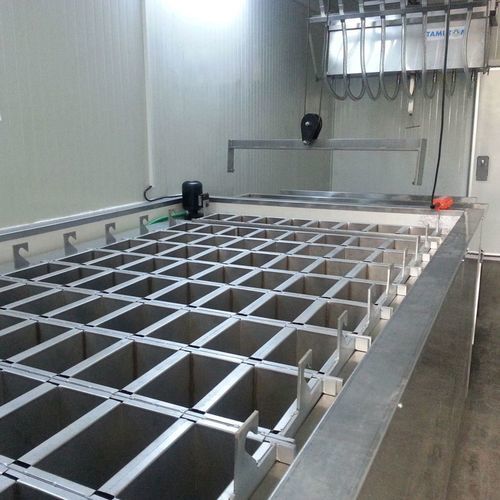

Block ice production machine BIM4TCOS

for the food industry

Product overview
The 4 ton per day containerized block ice machine with integrated cold storage is designed for medium and large-scale cooling operations. With a daily production capacity of 4,000 kg of high-density block ice, it provides reliable production for continuous industrial needs.

Applications

• Fishing ports
• Seafood processing plants
• Meat and poultry factories
• Dairy producers and beverage industries
• Fresh produce export centers
• Concrete cooling projects (infrastructure)
• Shrimp processors and fish filleting plants
• Slaughterhouses

Cold room performance
The integrated cold room keeps the ice at -5°C to -10°C to prevent melting and loss in hot climates, ensuring a reliable cold chain and reduced operational losses.

Advantages
The containerized design allows fast installation without buildings or foundations, making it suitable for remote or rapidly deployed sites.

Technical information — BRINE TYPE
Total Ice Making Capacity: 4000 Kg /day
Ice Block Amount per Shift: 112 Blocks
Each Block Weight: 12 Kg (10cm*20cm*70cm)
Production Time per Shift: 7-8 Hours
Daily Block Production: 336 Pcs
Power Supply: 380-415 V, 3 Phase, 50-60Hz
Ice Temperature: -12°C
Refrigerant: Freon R404A
Unit Weight: 6000 Kg
Unit Dimensions: 40FT Standart Container
Power Consumption: 19.00 KW/h
Compressor Capacity: 20 HP
Condenser and Capacity: Air Condenser / 33898 M³/H
Type: 40FT Standard Isolation’s Container with Sandwich Panels
Cold Room Isolation: 100mm Sandwich Panels and Cooling Unit
Cold Room Dimensions: 300cm*200cm*250cm

Technical specifications

• Total Ice Making Capacity: 4000 Kg/day
• Ice Block Amount per Shift: 112 Blocks
• Each Block Weight: 12 Kg (10cm*20cm*70cm)
• Production Time per Shift: 7-8 Hours
• Daily Block Production: 336 Pcs
• Power Supply: 380-415 V, 3 Phase, 50-60Hz
• Ice Temperature: -12°C
• Refrigerant: Freon R404A
• Unit Weight: 6000 Kg
• Unit Dimensions: 40FT Standart Container
• Power Consumption: 19.00 KW/h
• Compressor Capacity: 20 HP
• Condenser and Capacity: Air Condenser / 33898 M³/H
• Type: 40FT Standard Isolation’s Container with Sandwich Panels
• Cold Room Isolation: 100mm Sandwich Panels and Cooling Unit
• Cold Room Dimensions: 300cm*200cm*250cm
