Block ice production machine BIM10TCO

for the food industry

Product overview
The 10,000 kg/day containerized block ice machine Tamutom BIM10TCO is an industrial ice production system designed for mega fishing ports, international seafood export hubs, large cold-chain logistics, meat and poultry plants, beverage factories and major construction projects. With a daily output of 10,000 kg of solid block ice it can supply dozens of fishing vessels, hundreds of trucks and multiple processing facilities simultaneously.

Design & deployment

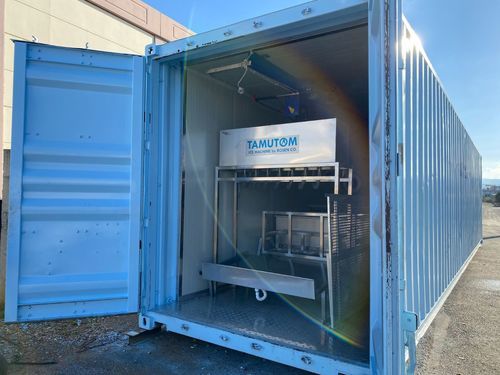

The containerized layout integrates refrigeration units, ice molds, hydraulic lifting and control panels inside a single ISO 40FT container for rapid on-site deployment without buildings or civil works. This configuration reduces installation time and enables relocation to ports, coastal zones, export terminals and construction sites.

Applications

• Large-scale seafood preservation and export
• Meat and poultry processing and distribution
• Fruit and vegetable cooling for storage and transport
• Beverage production and cold-chain logistics
• Concrete cooling for mega construction projects (ports, dams, airports, bridges, power plants)

Technical Information — BRINE TYPE

• Total ice making capacity: 10,000 kg/day
• Ice block amount per shift: 225 blocks
• Each block weight and size: 15 kg (12 cm × 21 cm × 70 cm)
• Production time per shift: 7–8 hours
• Daily block production: 675 pcs
• Power supply: 380–415 V, 3 phase, 50–60 Hz
• Ice temperature: −12 °C
• Refrigerant: R404A (Freon)
• Unit weight: 8,750 kg
• Unit dimensions: 40FT standard container
• Power consumption: 40 kW/h
• Compressor capacity: 60 HP
• Condenser and capacity: air condenser / 39,016 m³/h
• Container type: 40FT insulated container with sandwich panels

Key features and commercial benefits

• Rapid deployment without civil works, suitable for ports and construction sites
• Long-duration cooling for container shipping, open trucks and fishing vessels in hot climates
• Scalable capacity to support fleets, processing plants and cold-chain operations
• Also applicable to concrete cooling to reduce mix temperature and prevent thermal cracking
